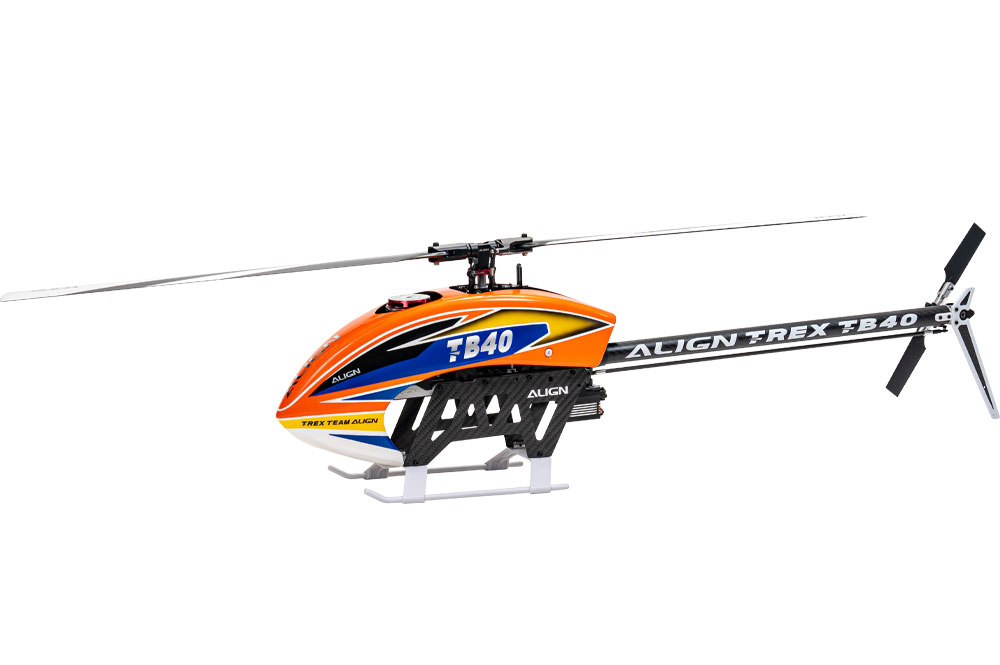

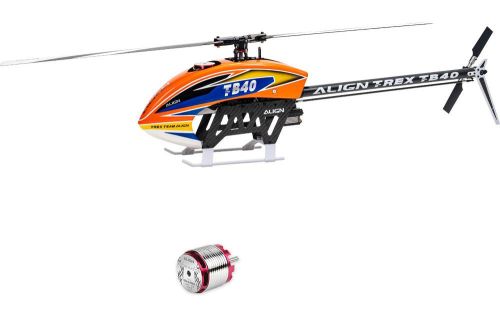

T-Rex TB40 KIT

Electric equipment
• 400MX Brushless Motor(1100KV/3220) x 1


Specification
• Length: 747mm
• Height: 223mm
• Width: 103mm
• Main Blade Length: 380mm
• Main Rotor Diameter: 851mm
• Tail Length: 70mm
• Tail Rotor Diameter: 188mm

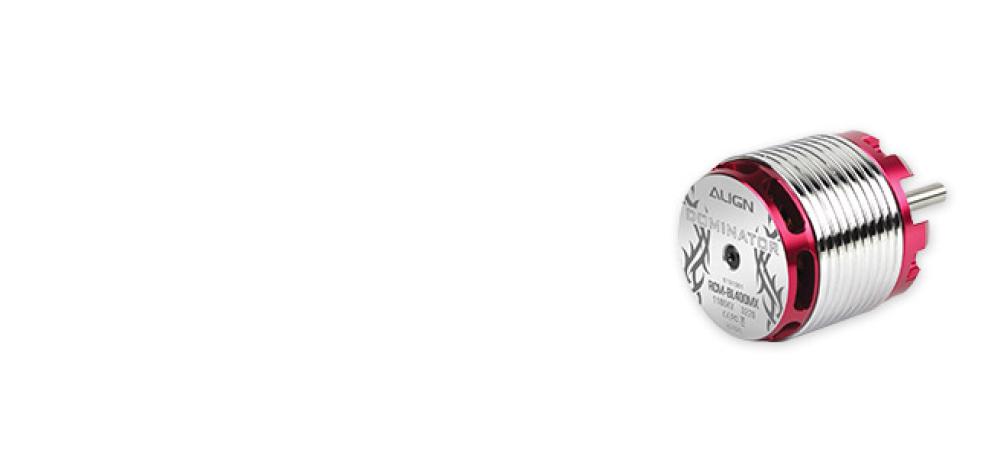

• 400MX Brushless Motor(1100KV/3220)
• Motor Belt Pulley: 22T
• Drive Gear Ratio: 6.44:1:4.04
• Max RPM(approx.): 3400RPM
• Frame Weight(Batteries not included): Approx. 953g


Accessories
• TB40 Kit Set x 1 set
• 380 Carbon Fiber Blades x 1 set
• 70 Carbon Fiber Tail Blades x 1 set
• 400MX Brushless Motor(1100KV/3220) x 1


Radio transmitter and electronic equipment required for assembly
• Transmitter(6-channel or more, helicopter system)
• Receiver(6-channel or more)
• RCC-6CX Intelligent Balance Charger
• 22.2V 6S 1850~2200mAh Li-Po Battery
• Digital Pitch Gauge
• Multi-function Tester
• Flybarless System x 1
• CCPM Brushless Servo x 3
• Rudder Brushless Servo x 1
• Brushless ESC x 1
