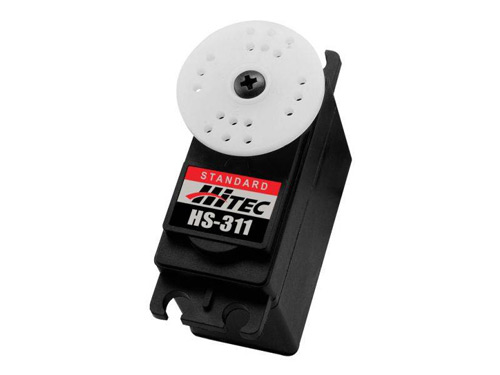

HiTEC HS-311 Analog
Preisgünstiges Servo mit Standard-Abmessungen. Robust und zuverlässig. Ein vielseitiges Servo, das den Geldbeutel schont.
- 4-fach-Poti
- Nylongelagerter Abtrieb
Technische Daten
Geschwindigkeit/Speed 4,8/6V (sec/60°): 0.19/0.15
Drehmoment/Torque 4,8/6V (Ncm): 30/35
Maß/Dimension (LxBxH): 40x20x36.5
Gewicht/Weight (g): 43.0
Motor: Eisenanker/Standard
Getriebe/Gear: Nylon
Control System: +PULSE WIDTH CONTROL 1500usec NEUTRAL
Operating Voltage Range: 4.8V TO 6.0V
Idle Current mA: 7.4/7.7 AT STOPPED
Running Current 4,8/6V (mA/60°): 160/180
Stall Current 4,8/6V (mA): 700/800
Dead Band Width: 5usec
Operating Travel: 40°
Direction: CLOCK WISE/PULSE TRAVELING 1500 TO 1900usec
Potentiometer Type: 4 SLIDER/DIRECT DRIVE
Amplifier Type: ANALOG CONTROLLER & TRANSISTOR DRIVER
Horn Gear Spline: 24 SEGMENTS/?5.76
Splined Horns: SUPER/R-XA
Connector Wire Length: 300mm
Connector Wire Strand Counter: 40EA
- 4-fach-Poti
- Nylongelagerter Abtrieb
Technische Daten
Geschwindigkeit/Speed 4,8/6V (sec/60°): 0.19/0.15
Drehmoment/Torque 4,8/6V (Ncm): 30/35
Maß/Dimension (LxBxH): 40x20x36.5
Gewicht/Weight (g): 43.0
Motor: Eisenanker/Standard
Getriebe/Gear: Nylon
Control System: +PULSE WIDTH CONTROL 1500usec NEUTRAL
Operating Voltage Range: 4.8V TO 6.0V
Idle Current mA: 7.4/7.7 AT STOPPED
Running Current 4,8/6V (mA/60°): 160/180
Stall Current 4,8/6V (mA): 700/800
Dead Band Width: 5usec
Operating Travel: 40°
Direction: CLOCK WISE/PULSE TRAVELING 1500 TO 1900usec
Potentiometer Type: 4 SLIDER/DIRECT DRIVE
Amplifier Type: ANALOG CONTROLLER & TRANSISTOR DRIVER
Horn Gear Spline: 24 SEGMENTS/?5.76
Splined Horns: SUPER/R-XA
Connector Wire Length: 300mm
Connector Wire Strand Counter: 40EA
Im Zulauf, in Kürze wieder lieferbar
Artikelnummer | HIT-112311 |
Hersteller | HiTEC |
Packungsgewicht | 0,06 Kg |
EAN | 669962310819 |
