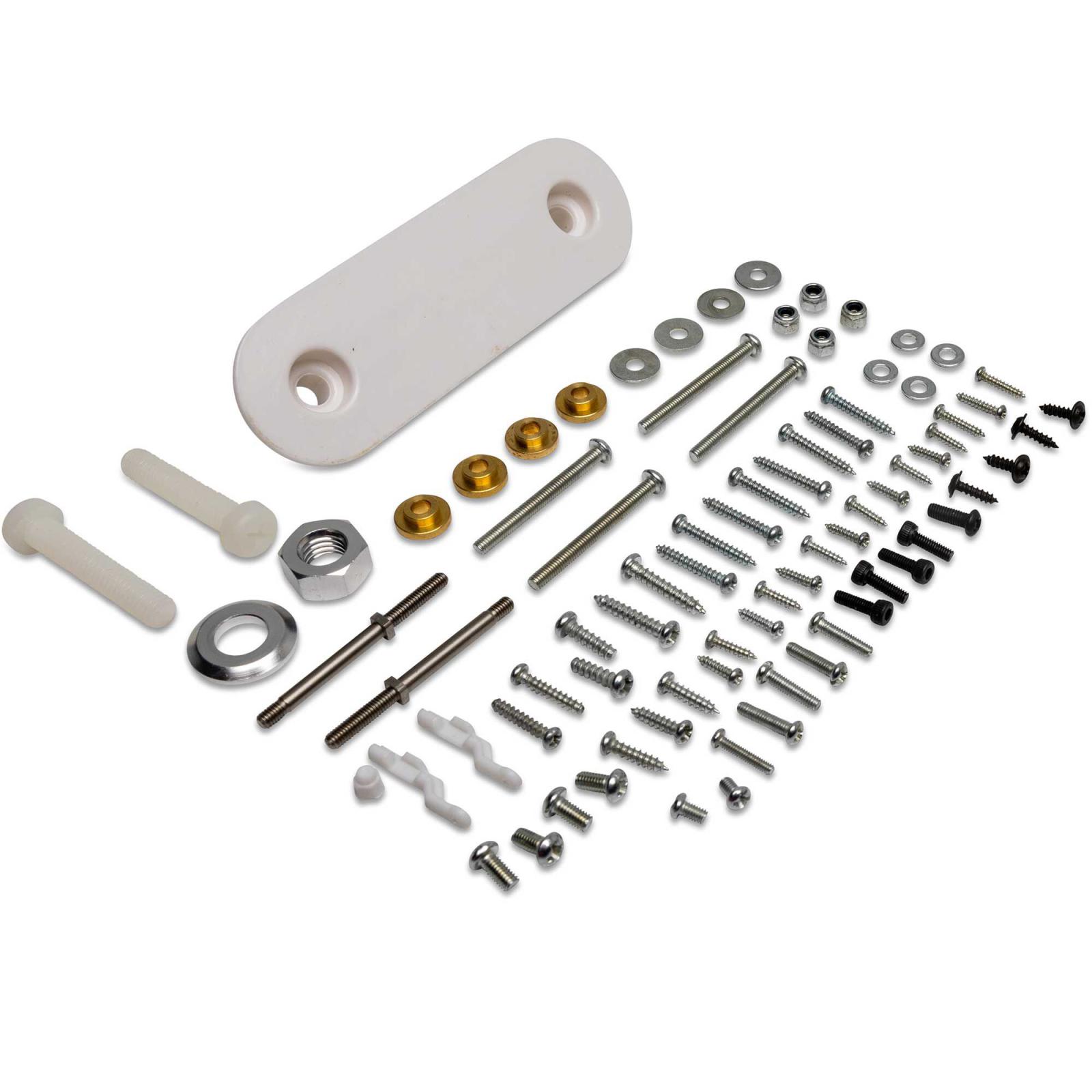

Hardware Set: Night Timber X Evolution 1.2m

Technische Daten

• Part Type: Airframe Parts


In The Box
• (2) Wing Hold Down Nylon Screws M4 x 30mm
• (2) Nylon Pushrod Keepers
• (1) Wing Mount Joiner Bracket
• (1) Prop Nut M6
• (1) Prop Washer M6
• (1) Tail Wheel Nylon Retainer Nut
• (4) Brass Top Hat Spring Washers 3 x 6 x1 0mm
• (4) Axle Washers 3mm
• (4) Motor Mount Washers 3mm
• (4) Main Gear Axle Nuts M3
• (2) Spring Securing Screws 3mm x 16mm
• (4) Motor Mount Screws M3 x 30mm
• (2) Main Gear Axles
• (8) Landing Gear Pivot Retainer Securing Screws 2.5mm x 16mm
• (4) Prop Adapter M2.5 x 8mm
• (4) Main Landing Gear Securing Screws M2.5 x 10mm
• (2) Rear Float Mount Securing Screws 3mm x 10mm
• (3) Cowl Securing Screws 2mmx10mm
• (3) Tail Wheel Tiller Mounting Screws 2.5mm x 10mm
• (12) Aileron and Flap Servo Mounting Plate Screws 2mm x 8mm
• (4) Motor “X” Mount Screws M3 x 6mm
• (2) EZ Connector Securing Screws M2.5 x 5mm
• (2) Stabilizer Securing Screws 2.5mm x 12mm
• (1) Spinner Securing Screw M3 x 8mm
• (1) Rudder Hinge Screw M2 x 10mm
• (4) Rudder and Elevator Servo Securing Screws 2.5mm x 8mm
