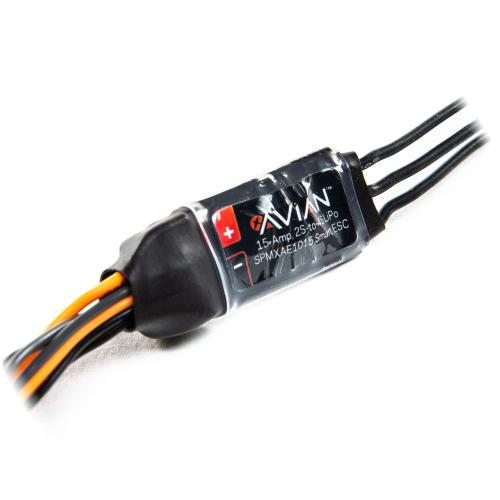

Avian 15-Amp Smart Lite Brushless ESC, 2S-4S: IC2

Specifications

BEC - Yes
BEC Maximum Burst Current - 12A
BEC Voltage - 5.2V
Input Voltage - 2S - 4S LiPo
Motor Output Lead - 2mm
Part Type - Electronics
Product Application - Air
Product Height - 0.4" (10 mm)
Application - Air
Auto Cutoff - Yes
BEC Continous Current - 3A
Low-Voltage Cutoff Programmable - Yes
Product Weight - 0.6oz (16g)
Product Width - 0.6" (15 mm)
Technology - Smart
BEC Type - Linear
Max Input Voltage - 14.8V
Forward - Yes
Reverse - Yes
Adjustable Timing - Yes
Brakes - Yes
Programmable - Yes
Programming Options - Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Maximum Burst Current - 25A
Maximum Continuous Current - 15A
Connector Type - IC2
ESC Type - Brushless
Product Length - 1.4" (36 mm)



Product Overview
Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Please note - The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.

Content

1x Spektrum™ Avian™ Smart ESC
1x Spektrum Smart sticker sheet
1x Product Manual

Required for assembly

• Spektrum™ Aircraft Receiver
• Spektrum Transmitter
