Autorotationssystem - 200SRX

Lynx Heli Innovations has designed autorotation system for 200SRX.
Lynx 200SRX autorotation system has Aluminum Hub, and Carbon Steel Main Shaft.
Smooth power transmission and Heavy Duty specification will support your 200SRX Overpowered need to next level.
We spent time optimizing the design and fly testing to achieve the required strength and resistance with final design without compromise.
We are pilots, and we demand a heli that can support any over-stress fly condition.


FEATURES:
- Autorotation features.
- Direct replacement of std. 200SRX main gear / main shaft system

- Super precise Main gear concentricity for smooth and silent power transmission
- Carbon Steel Main shaft for the ultimate fly and crash resistance.
- One way hub with Japan brand one way bearing and super precise brass bushing assure perfect geometrically assembly and no play.
- FEA (Finite Elements Analysis) assisted, achieve lightweight and maximum strength.


TECHNICAL SPECIFICATION:
- Main Shaft Material: Carbon Steel 50 HRC
- One Way Hub Material: Aluminum 7075-T6
- One Way Bearing: Chrome Steel Japan brand
- Assembly weight: 10.5 g

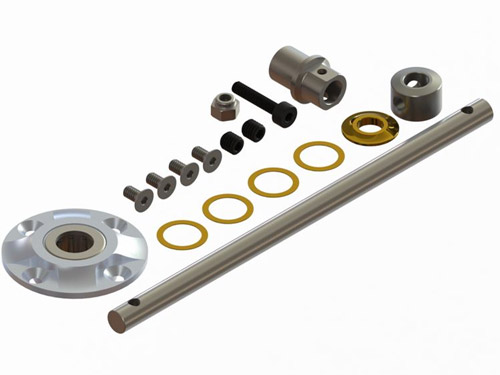

PACKING LIST:
- 1 x 200SRX – Lynx One Way Carbon Steel Main Shaft
- 1 x 200SRX - Lynx One Way Hub System - pre assembled – Silver
- Brass Shims for the best play free adjustment.
