730MX Brushless Motor (960KV)
English
• Suitable for T-REX 550E• Brand new 730MX motor is especially designed for power upgraded T-REX 550E, normally found in 700 class high spec helicopter, that enthusiasts can clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits.
• The 730MX (850KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
• Maintenance free, high torque, high efficiency, stable and quiet.
• High-speed ball bearings, powerful magnetic outrunner rotor.
• Must use with:
- 550E PRO Motor Mount (H55B002XXT)
- 550E PRO Carbon Fiber Main Frame (2.0mm) (H55B003XXT)
- Motor Pinion Helical Gear 16T (H55G003XXT)
Specifications
Input voltage: 22,2V (6S)
Max continuous current: 115A/195A (5sec)
Max output power: 2550W/4330W (5sec)
KV value: 960KV
Stator Dimension: 4230
Stator Arms: 12
Magnet Poles: 8
Dimension: 6x52x89.1mm
Weight: 380g

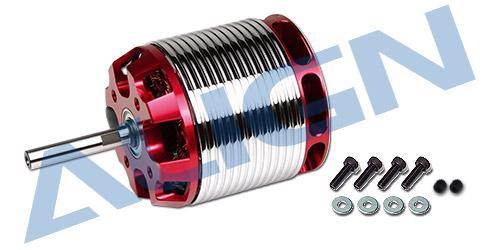

Content
• 1x 730MX Brushless Motor (960KV)
• 4x Socket screw (M4x10mm)
• 2x Set Screw
• 4x Washer (4x8x1mm)
• 3x 4mm gilt terminal
Artikel auf Lager
Lieferzeit ca. 1 bis 3 Tage*
Artikelnummer | HML73M02 |
Hersteller | Align |
Packungsgewicht | 0,4 Kg |
EAN | 4713413703111 |
