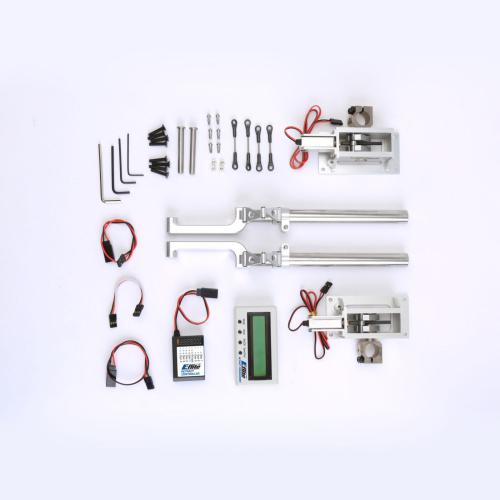

50-60cc 90-Degree Main Retract: P-51

Key Features

• Ideal for scale airplanes equipped with a 50-60cc gas engine or equivalent• Allows the operation and sequencing of retracts and gear doors with a single receiver channel• Electronic control box offers sequence option and auxiliary power• Included programming unit features an LCD display and remote functionality• CNC machined, aluminum offset oleo struts delivers an authentic P-51 look• Stainless-steel , shock-absorbing main struts provide smooth ground handling• High strength CNC machined aluminum scissor link and titanium axles• Counter-sunk mounting holed for a professional installation• Includes mounting hardware, tools and wire extension leads• Over-current protection shuts off the retract if the landing gear ever becomes jammed• Perfect for the 5-1/4? P-51 Aluminum CNC Main Wheel (HAN477018, sold separately)• Available P-51 60cc Retractable Tail Wheel (EFLG750, sold separately)

Technische Daten

• Current Draw Stall: 0.8A-1.0A
• Part Type: Retract Parts
• Voltage: 6.0V - 8.4V
• Outer Diameter: Axle: 1/4 in (6.28mm)
• Current Draw Idle: 10mA
