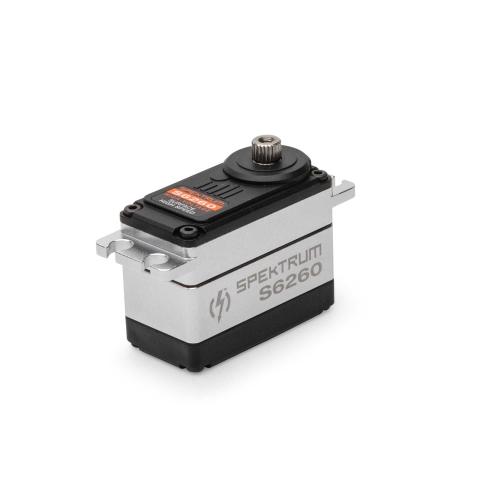

S6260 Standard Digital HV High Speed Metal Gear Surface Servo

Key Features

• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Technische Daten

• Bushing Or Bearing: Bearing
• Bearing: Dual
• Gear Type: Metal
• Product Height: 1.25 in (31.8mm)
• Maximum Servo Torque: 167 oz-in (12.0kg-cm) @ 6V; 210 oz-in (15.1kg-cm) @ 7.4V; 241 oz-in (17.4kg-cm) @ 8.4V
• Product Application: Surface
• Product Weight: 2.3 oz (65.2g)
• Connector Wire Length: 7.87 in (200mm)
• Rotation Range: 120 deg
• Product Length: 1.61 in (41mm)
• Servo Operating Voltage: 6.0 - 8.4V (HV)
• Programmable: No
• Application: Surface
• Current Draw Stall: 4900mA @ 6.0V
• Product Width: 0.82 in (20.8mm)
• Part Type: Electronics
• Spline Count: 23 Teeth
• Current Draw Idle: 9.8 mA @ 6.0V
• Servo Type: Digital
• Wire Gauge: 22 AWG
• Servo Size Category: Standard
• Material: Metal / Plastic
• Servo Größenkategorie: Standard
• Anwendung: Oberfläche
• Getriebeart: Metall
