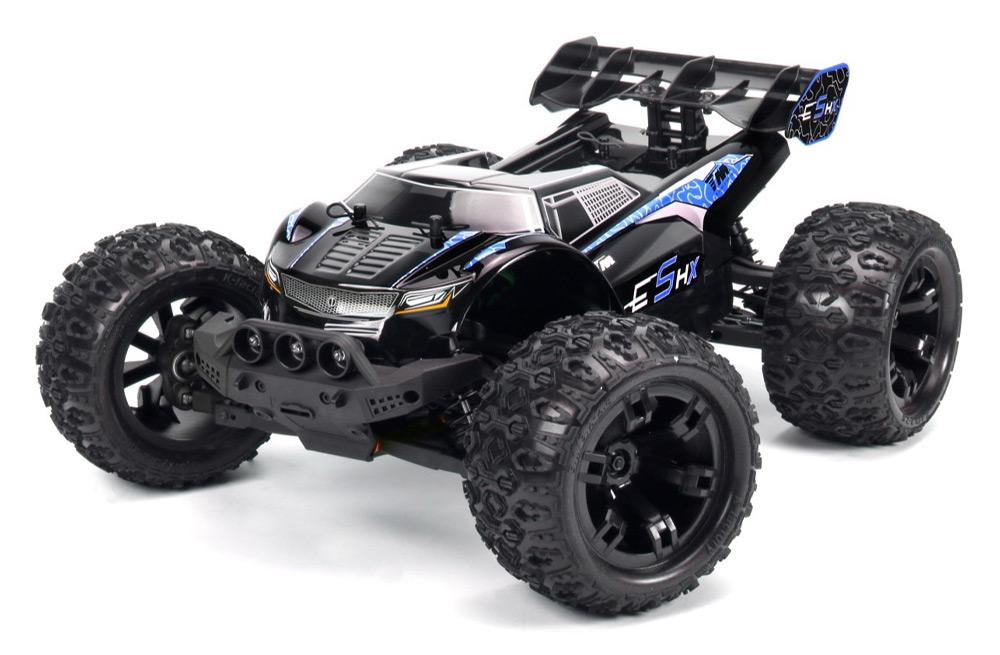

E5 HX - 1/10 Racing Monster Truck Brushless - 4WD - RTR

Team Magic E5 HX - Black/Blue1/10 Racing Monster Truck Brushless - 4WD - XT90 - RTR

Features

To create the Team Magic E5 HX, Team Magic had the idea of designing a 1/8th scale racing monster truck. The durability and power of a 1:8 racing monster was combined with the agility, acceleration and fast handling of a 1:10 model. Some new special features have also been added.

The E5 HX is currently the fastest and most powerful 1:10 Racing Monster on the market. The front bumper is equipped with three white and two bright red LEDs. The Team Magic E5 HX includes a beautifully molded Racing Monster body made from tough polycarbonate Lexan to protect the internal components. Robust 14mm wheel adapters help to ensure high power transmission to the grippy K-Factory tires. This ensures better riding characteristics and faster acceleration on all surfaces. Furthermore, an adjustable, robust wheelie bar (support wheel) is attached to the rear end of the model. For better control of wheelies (wheelie = riding on two wheels), the Team Magic E5 HX has a wheelie wheel with ball bearings. You will love it!

All plastic components are made of high-quality fiber-reinforced material, which gives the Team Magic E5 HX greater stability as well as less tweak (twisting) and therefore better geometry and gear efficiency.

The front and rear swing arms are symmetrical, which reduces the cost of spare parts. Drive shaft bones always get lost and have a high wear rate - that's why the Team Magic E5 HX is equipped with high quality CVD drive shafts at the front. Right out of the box, the Team Magic E5 HX has adjustable right/left threads and an adjustable servo saver. To better absorb big jumps and bumps, the E5HX features high volume oil pressure shocks and long travel suspension. See the rear end - push it down! There is an active toe-in which provides more control when landing and accelerating.

The Team Magic E5 HX chassis has a multi-connector plug which allows the electronics to be changed more quickly. Less cable clutter in the model thanks to the cable tunnel. Your 2-3s batteries are secured by a quick-change battery holder. A new dirt filter on the THOR controller protects the fan from dirt and water.

Team Magic has selected the best electronic components currently available on the market! A 15kg strong, waterproof, metal-driven SAVOX servo provides maximum precision in every situation. See - the waterproof receiver is in the waterproof receiver box. The 80Amp THOR speed controller and the 4400kv 550 THOR motor make the Team Magic E5 HX a rocket. To tame this power and make the E5 HX even more robust, the E5HX 1:8 has a steel gearbox module 1.0 and a 5mm motor shaft.

Drive a rocket - choose the Team Magic E5 HX!

Technical data

• Length 428mm
• Width 343mm
• Wheelbase 270mm
• Weight 2.7kg
• Tire dimension 5.1x3.25x2.75
• Controller waterproof 80A, 2-3s Lipo
• Motor 550 brushless 4400kv
• Gearing M1.0 steel gearbox
• Gearbox center shaft 4wd
• Big Bore oil pressure shock absorber
• Dirt & water filter
• Transmitter 2.4ghz
• 15kg waterproof Savox servo w. Metal gearbox
• 4 leds pre-installed
• Easy Access distributor board
• K-Factory tires
• Max speed 60km/h* @ 2s
• Max speed 85km/h* @ 3s

Content

1x Team Magic E5 HX - Black/Blue1/10 Racing Monster Truck
1x Remote control unit

Required for assembly

1x Battery 2S - 3S XT90 Plug
4x AA Battery
1x Charger
