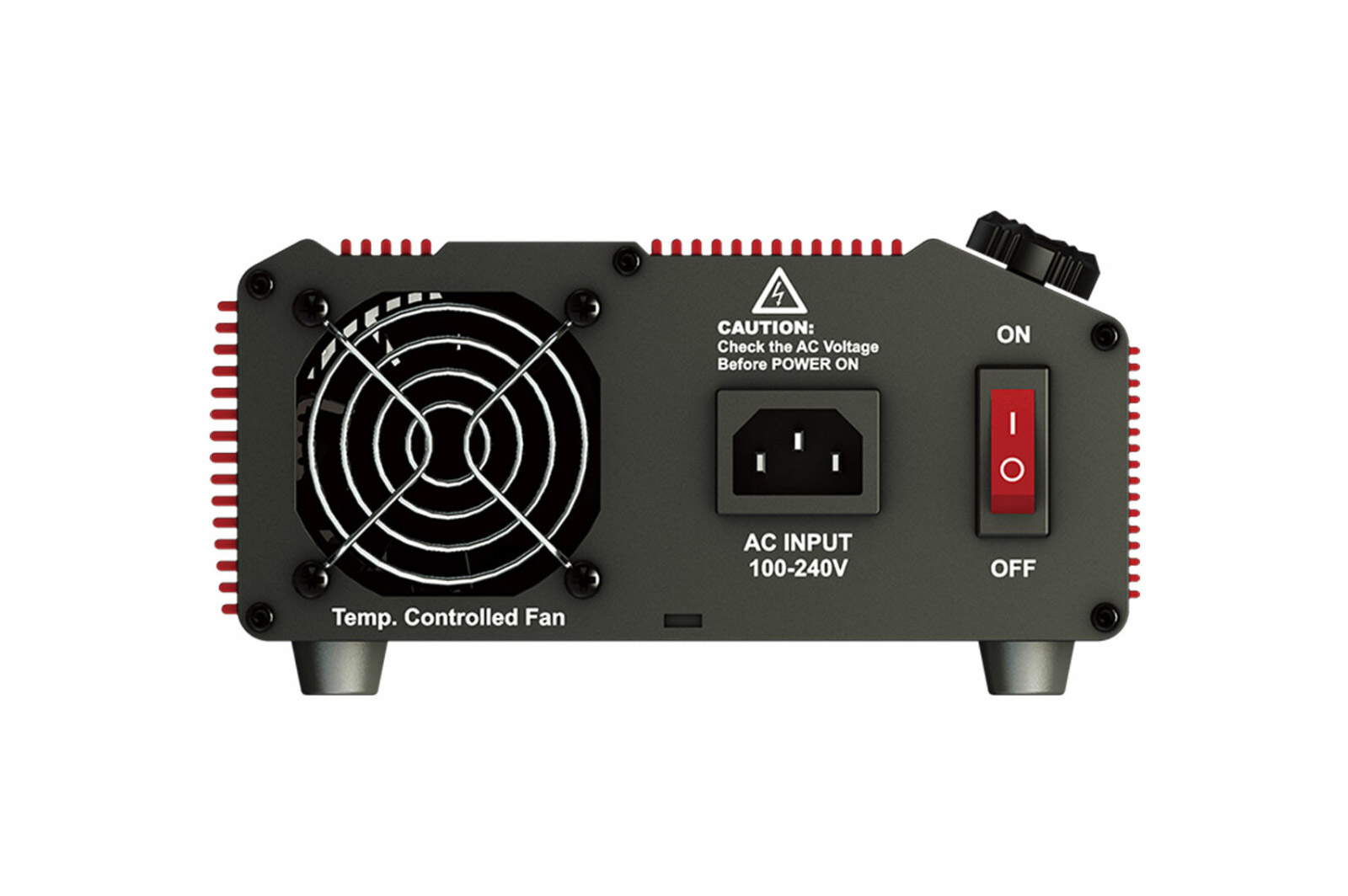

Netzteil "eFuel" 1200W 50A 15 - 30 Volt - einstellbar - LCD Anzeige V2
The SkyRC eFuel 1200W power supply is one of the most powerful power supplies currently available with 1200W output power, an adjustable output voltage of 15-30V and active PCF.
It provides the perfect foundation for extremely powerful chargers or for powering multiple chargers or loads simultaneously.
The power supply can work with 240V input voltage as well as with 120V and can thus be used worldwide.
The output voltage can be adjusted via a wheel and is shown in the LCD display, as well as the output current.
By using the active PCF (Power Factor Corrector) the power factor can be increased to 95% - an efficient use of the mains current! This results in smaller current peaks and a larger, usable input voltage range. The caused disturbances are reduced to a minimum.

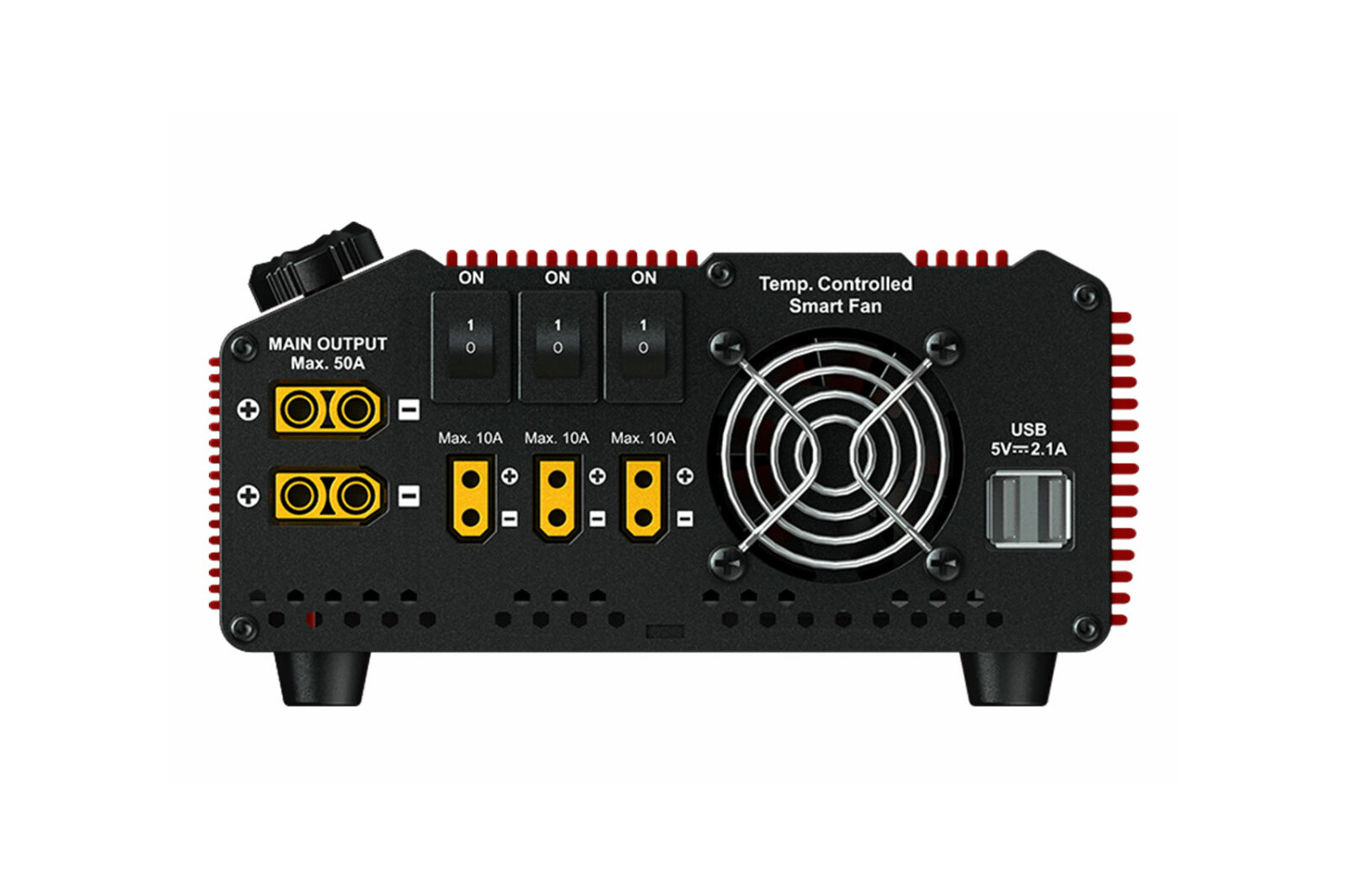

The two main outputs can supply up to 50 A each and the three auxiliary outputs up to 10 A each.
The LCD display shows the output voltage and current.
The power supply has two USB outputs of 5V and 2100mA, perfect for charging smartphone and tablet or similar.
The fan turns on automatically when the temperature reaches 50°C.
Dimensions: 305x170x85mm
Weight: 3.08kg
Input voltage: 100-240V AC
Output voltage: 15-30V DC+0.5V
Output current: 50A+1A
Overload protection: =51A 500MS
Fuse: 20A fuse
LCD display
Volt accuracy: +0.3V
Current accuracy: +0.5A
Power efficiency: 89
Power Factor: > 0.98
Overheating protection: <65°C
Cooling method: Fan
Operating Temperature: 0-40°C
It provides the perfect foundation for extremely powerful chargers or for powering multiple chargers or loads simultaneously.
The power supply can work with 240V input voltage as well as with 120V and can thus be used worldwide.
The output voltage can be adjusted via a wheel and is shown in the LCD display, as well as the output current.
By using the active PCF (Power Factor Corrector) the power factor can be increased to 95% - an efficient use of the mains current! This results in smaller current peaks and a larger, usable input voltage range. The caused disturbances are reduced to a minimum.
The two main outputs can supply up to 50 A each and the three auxiliary outputs up to 10 A each.
The LCD display shows the output voltage and current.
The power supply has two USB outputs of 5V and 2100mA, perfect for charging smartphone and tablet or similar.
The fan turns on automatically when the temperature reaches 50°C.
Technical Specifications:
Dimensions: 305x170x85mm
Weight: 3.08kg
Input voltage: 100-240V AC
Output voltage: 15-30V DC+0.5V
Output current: 50A+1A
Overload protection: =51A 500MS
Fuse: 20A fuse
LCD display
Volt accuracy: +0.3V
Current accuracy: +0.5A
Power efficiency: 89
Power Factor: > 0.98
Overheating protection: <65°C
Cooling method: Fan
Operating Temperature: 0-40°C
