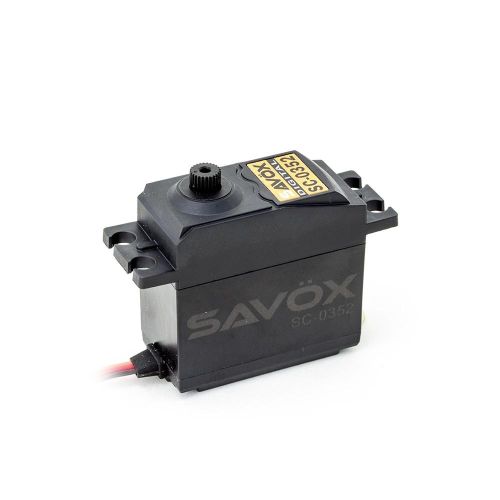

SAVÖX SC-0352+ Servo

Description: Digital servo
Digital servoClassification: StandardMotor: Brush motorGearbox: PlasticNumber of teeth output pinion: 25Housing: PlasticNumber of ball bearings: 2Positioning time (sec) to 60 deg: 0.14 at 4.8 V and 0.11 at 6.0 VPositioning force (kg): 4.2 at 4.8 V and 6.5 at 6.0 VWeight (gr): 42.0Dimensions L/W/H (mm): 40.7 x 20.0 x 39.4Application range: helicopter, airplane, car, boatPossible application examples: Standard servo in model aircraft

Characteristics

• Dimensions (L/W/H): 40.7 x 20.0 x 39.4 mm
• Weight: 42 grams
• 0.14/0.11 sec/60 degrees and 42/65 Ncm at 4.8/6.0 volts
• Digital servo
• Possible application examples: Standard servo in model aircraft

Technical data

Actuating time S2/60° (sec): 0.11
Actuating time S1/60° (sec): 0.14
Height (mm): 39.4
Actuating force S1 (kg*cm): 4.2
Weight (g): 42.0
Actuating force S2 (kg*cm): 6.5
Packaging: Blister large
High-voltage capable up to 8.4V: No
Voltage 1 (Volt): 4,8
Motor type: Brush motor
Recommended applications: Helicopter, airplane, car, boat
Gearbox type: Plastic
Housing type: Plastic
Ball bearing (number): 2
Voltage 2 (Volt): 6,0
Output teeth (number): 25
Classification: Standard

Scope of delivery

1x servo incl. servo lever and mounting screws
