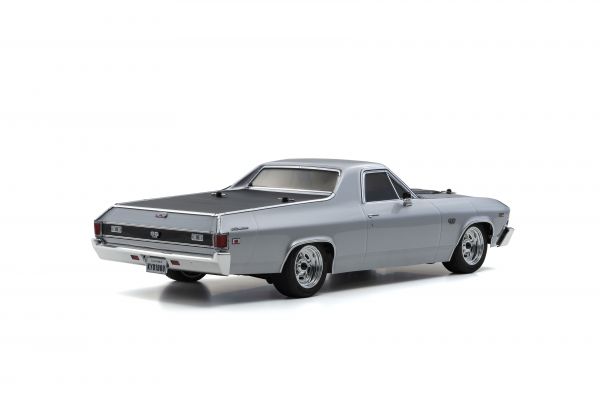

Chevy El Camino GRAU SS396 1969 Fazer MK2 (L) 1:10 - RTR

he Fazer chassis has undergone a complete transformation. The brand new Fazer Mk2 Touring Car FZ02L chassis is designed for pure driving pleasure. For the pure enjoyment of RC car driving, the combination of a beautifully reproduced body with the FAZER series chassis is unbeatable. Kyosho has taken its standard touring car chassis and completely redesigned it, taking performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight, while core strength and rigidity have been increased with new materials and ribs and stiffeners front and rear. In addition, the symmetrical chassis design provides excellent front/rear balance through suspension with responsive control, regardless of power source. With slipper clutches, front and rear wheel differentials, oil shock absorbers and full ball bearing specifications, the high durability and impact resistance allows the driver to realize the full potential of the chassis. The included brake disc wheel hubs with two different offsets (0mm, + 5mm) offer compatibility with 190mm and 200mm wide body styles and allow the wheelbase to be adjusted to 260mm by swapping out some parts (sold separately) for compatibility with other 1/10th scale body styles. The RTR package comes fully assembled and includes everything except the charger and drive battery, as well as accumulators/batteries for the transmitter.

Technical data

.
Chassis: FZ02L
Drive: 4WD
Length: 461mm
Width: 195mm
Wheelbase: 274mm
track width: 167mm
Tires: 64x27.7mm
Gear ratio: 6.5:1
Motor: 550 brushed motor 14T (G14L)
Regulator: KA060-91W 60A (7.2V - 8.4V)
Drive battery: 6 cells 7.2V NiMH or 2S 7.4V LiPo
Weight: 1650g

Scope of supply

.
• 1x Factory assembled chassis complete with control rods.
• 1x Pre-cut and painted body complete with decals
• 1x remote control 2,4 GHz (Syncro KT-231P+)
• 1x receiver
• 1x steering servo (KS202W)
• 2x brake disc offeset (0mm/+5mm)
• 3x hex key (1,5/2,0/2,5mm)
• 1x cross wrench hexagon (5,0/5,5/7,0/8,0mm)

Still needed

• 1x ride battery (6-cell 7.2V NiMH or 2S 7.4V LiPo 3000-5000mAh with DEAN connector)
• 1x charger (6-cell NiMH or 2S 7.4V LiPo capable)
• 4x AA battery
