Fusion 700 Kit High Performance Super Combo

Features

The Fusion 700 offers the best performance ever available in a blade helicopter, as well as a perfect combination of comfort and value with the included rotor blades and engine.

THE TOP MODEL

Like the Fusion series models that came before it, and still available with parts support as of 2018, the top-of-the-line Blade® Fusion 700 bridges the gap between comfort and performance, and quality and value. The extremely strong carbon fiber and aluminum frame allows you to combine the included rotor blades and motor with popular 12S battery setups for impressive performance. Now you can make the dream of a 700 helicopter with state-of-the-art capabilities - along with incredible durability and reliability - come true!

THE HIGHEST LEVEL OF PERFORMANCE

Designed with nearly two decades of engineering and development experience, the Fusion 700 represents the pinnacle of Blade helicopter development. It combines modern high-performance features in a high-quality, robust and reliable frame that is ready to deliver professional flight performance for sport, precision and aggressive 3D flying. The extremely durable carbon fiber and aluminum frame design is quick to assemble and easy to maintain and repair. The helical-geared Delrin® main gear is powered by the included brushless 4735-540kV outrunner motor, which delivers incredible torque and power with popular 12S or dual 6S LiPo 4000-5000mAh batteries. A belt-driven, machined aluminum tail assembly ensures a stable tail every time you fly. Whether you're an advanced pilot transitioning to your first 700 heli or you're already a world-class 3D pilot, the Fusion 700 offers an unmatched combination of comfort, performance, quality and value!
The Fusion 700 is available as a kit including a motor and 700mm carbon fiber main rotor blades and 105mm tail rotor blades, which you can complete with the ESC, servos, flight controller and receiver of your choice. It's also available in two money-saving Super Combos that include premium Spektrum components, including H6350 and H6360 brushless servos, an updated and improved FC6350HX flybarless system, a DSMX-compatible receiver and your choice of 120-amp or 200-amp HV Smart ESC. Both combos are compatible with 12S 4000-5000mAh battery setups, and the 120A ESC version is a great choice for almost any pilot, including 3D-ambitious pilots. The 200A ESC version offers more headroom for world-class pilots who want to fly the most aggressive 3D maneuvers!
An optional 4730-350kV motor along with other tail pulleys and longer 115mm tail rotor blades are available separately for those who prefer scale, sport and low head speed 3D (LH3D) flying with longer flight times. There is also an optional orange painted canopy as well as a carbon fiber tail fin and black skids for those who prefer a different look.
In addition to combos and optional parts that allow you to equip and customize the Fusion 700 to your liking, we also understand the importance of spare parts supply and long-term availability. The complete range of spare parts for the Fusion 700 is available at competitive prices and, like the helicopter itself, will be available for many years to come - just like the helicopters and parts for the Fusion 360, 480 and 550 models have been since 2018.

Blade Fusion 700 RC Helicopter Kit Features

• Extremely stable and durable carbon fiber and aluminum construction
• High-strength 15mm main rotor shaft and 10mm steel blade bearing shaft with metal rotor head components

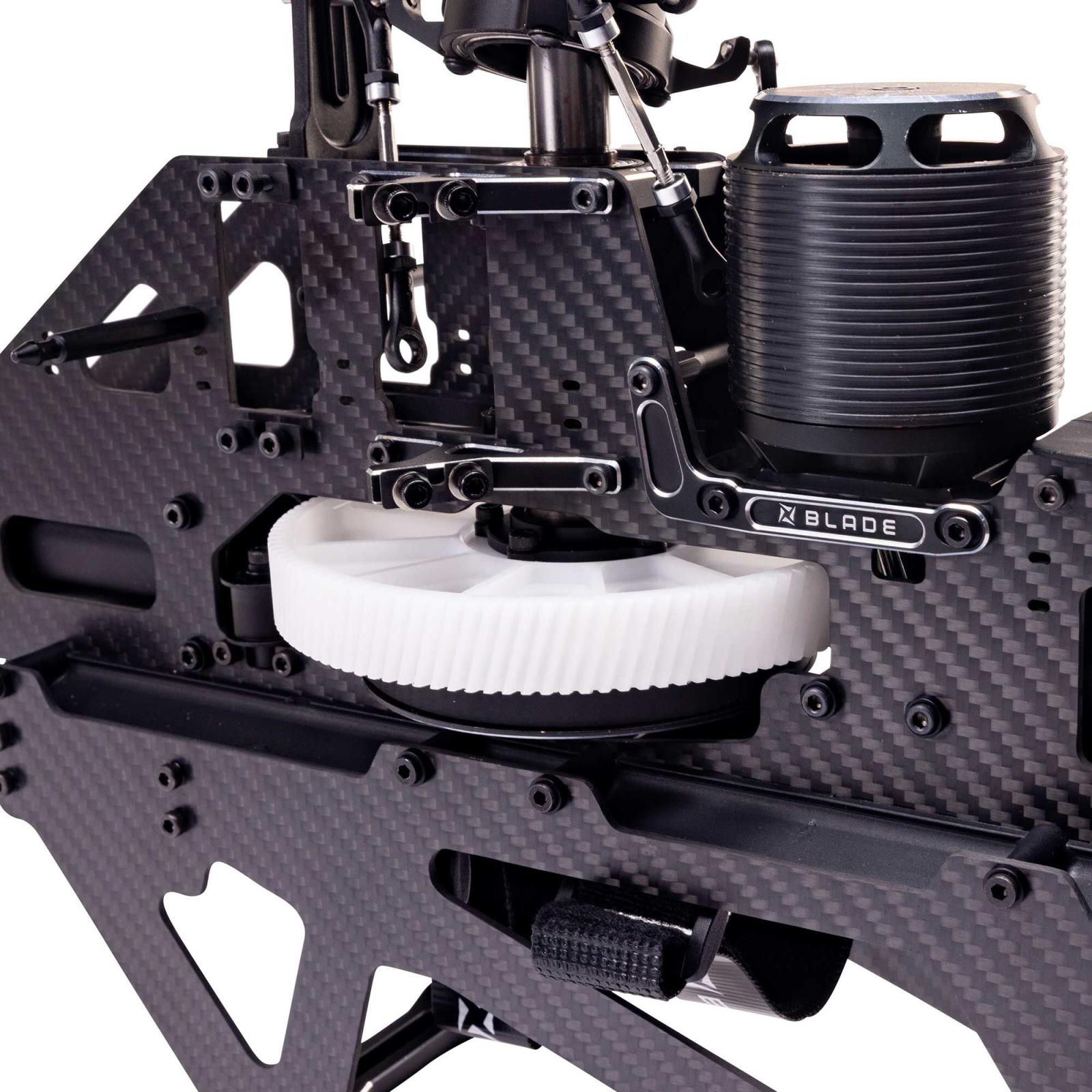

• Efficient helical Delrin® main gear paired with a steel pinion gear for quiet and reliable performance
• Oval aluminum tail boom eliminates the need for bracing
• 8mm wide belt for the rear with adjustable tension
• High strength 6mm steel tail shaft paired with a metal idler arm and blade holders
• Aluminum tail housing with a metal tail drive pulley
• Optional lower kV motor, different tail pulleys and longer tail blades for low K 3D Includes 700mm main rotor blades and 105mm carbon fiber tail rotor blades for top speed (LH3D) and other flight styles
• 5mm diameter carbon fiber tail pushrod for precise tail control
• Orange painted canopy, carbon fiber tail fin and black skids sold separately to personalize the look

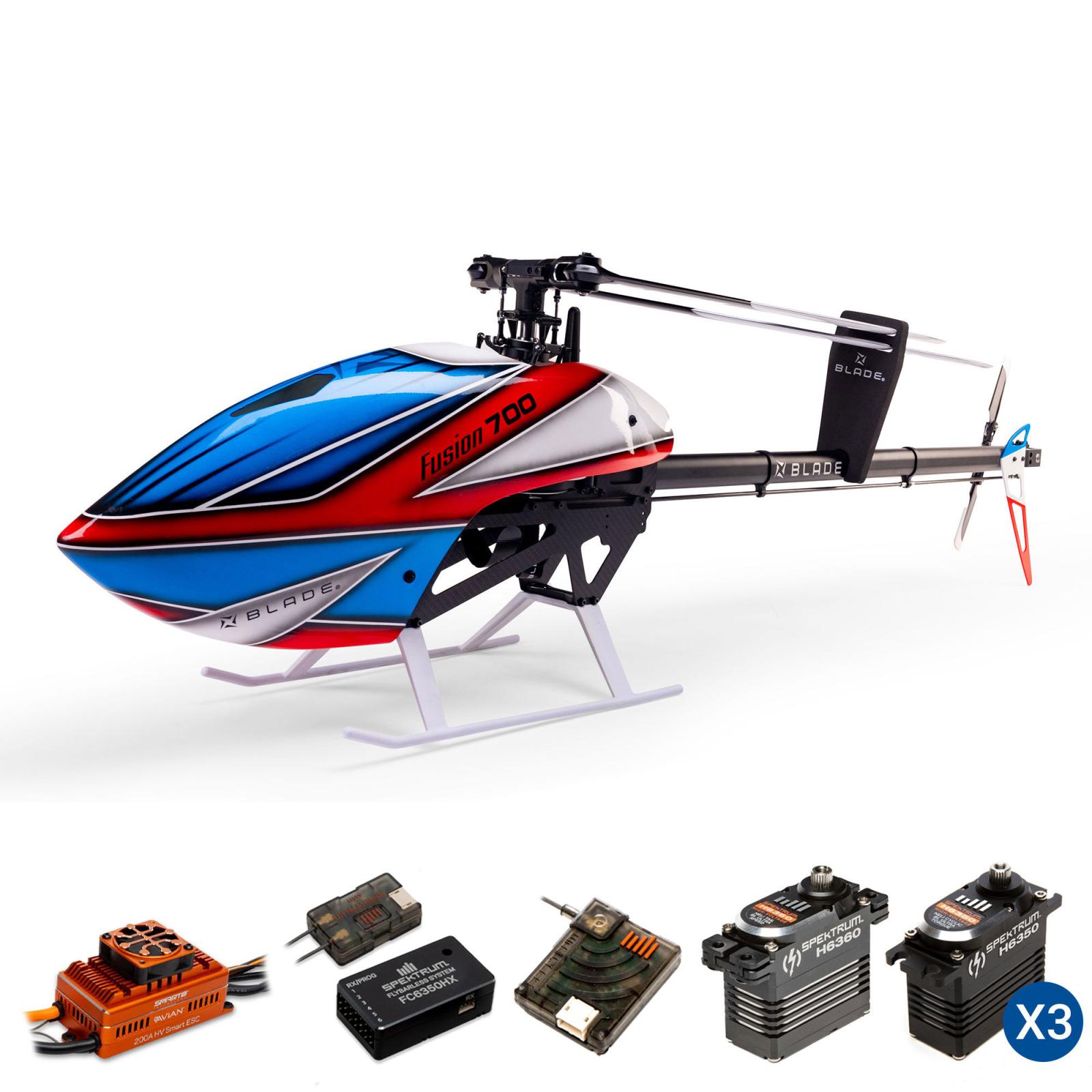

• This High Power Super Combo also includes the following premium Spektrum components:
• (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (SPMSH6350)
• (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (SPMSH6360)
• (1) Spektrum Avian 200A Brushless Smart ESC for 6S-14S with IC5 (SPMXAE1200HV)
• (1) Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350H)
• (1) Spektrum DSMX Satellite Receiver (SPM9745)

Capability level 4 - experience required
Skill Level 4 aircraft like this are suitable for RC pilots who already have experience and the skills to assemble, program and fly similar class models. And while this is a perfect first 700-size helicopter for intermediate pilots, you should have the experience and skills required to successfully assemble, program and fly other helicopter models such as the Blade Fusion 480 and 550 before attempting to fly the Fusion 700.

Features of the mechanics
• Includes a 4735-540kV outrunner motor that is compatible with common 12S battery configurations
• Precision machined helical Delrin® main gear with 11 and 12T pinions
• Black anodized aluminium swashplate and other components
• 700mm carbon fiber main rotor blades included
• Freewheel auto-rotation clutch and machined rotor head dampers with O-rings
• High strength 15mm main rotor shaft and 10mm steel blade bearing shaft

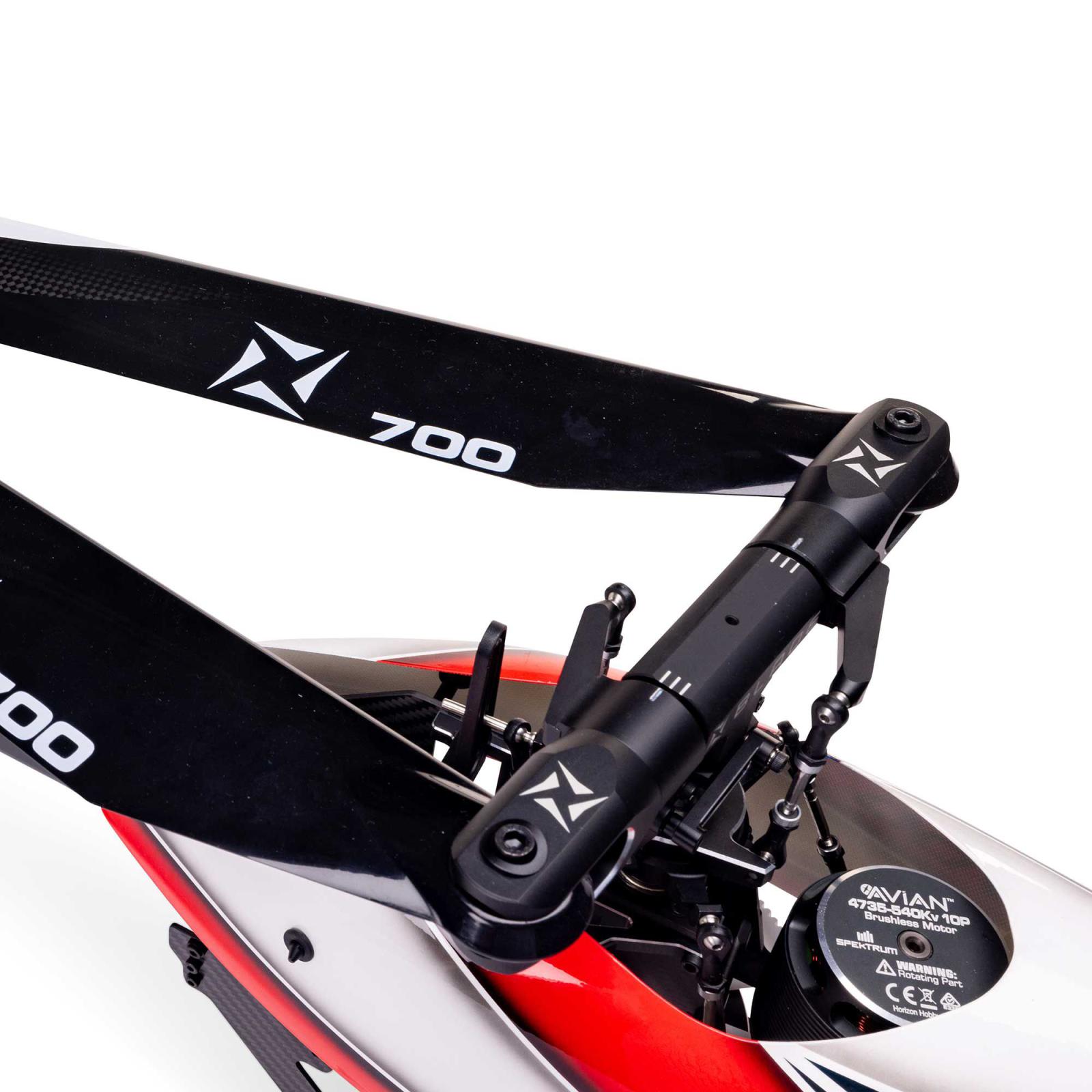

• Aluminum blade holder with zero-pitch markings

Frame features
• Fully constructed from metal and 2mm thick carbon fiber
• 2-piece white skids and painted fiberglass canopy for best visibility
• Retractable carbon fiber battery holder with positive locking mechanism
• Reinforced bearing block for the main rotor shaft made of milled aluminum

Tail features
• Oval aluminum tail boom for added strength and rigidity without bracing
• Tail housing made of milled aluminum and with separately painted fin for better visibility
• 8mm wide drive belt with adjustable tension drives a large aluminum pulley
• Includes 105mm carbon fiber tail rotor blades
• Belt-driven tail rotor for lighter weight, fewer parts and easier maintenance
• 6mm high-strength steel tail shaft with metal bell crank, hub, and grips
• 5mm carbon fiber tail pushrod with ball joints for precise control
• Hidden tail servo for added protection and a sleek look

Blade Fusion 700 RC Helicopter Kit Video

Technical Specifications

• Tail Blade Material: Carbon Fiber
• Approximate Assembly Time: 5-7 Hours
• Tail Drive: Belt Drive
• Product Height: 14.88" (378 mm)
• Recommended Motor Battery: SPMX-1091
• Charger: Sold Separately
• Swashplate Type: 120 Degree CCPM
• Receiver: Included
• Servos: Included
• Main Blade Material: Carbon Fiber
• Tail Rotor Diameter: 11.5" (292 mm)
• Main Motor Type: Brushless
• Product Length: 54.5" (1384 mm)
• Tail Rotor Blade Length: 4.13" (105 mm)
• Main Rotor Head Type: Collective Pitch Flybarless
• Product Weight: With recommended battery: 12.5lb (5670g)
• Skill Level: Level 4
• Speed Control: Included
• Battery: Sold Separately
• Canopy/Body Material: Fiberglass
• Motor Size: 4735-540Kv 10-Pole
• Gear Ratio: 9.33-10.18
• Power Type: Electric
• Completion Level: Kit
• Main Frame Material: Carbon Fiber
• Product Width: 8.5" (216 mm)
• Main Rotor Diameter: 62" (1575 mm)
• Main Rotor Blade Length: 27.56" (700 mm)
• Power Type: Electric
• Main Rotor Head Type: Collective Pitch Flybarless
• Main Rotor Material: Carbon Fiber
• Main Motor Type: Brushless
• Degree of completion: Kit
• Charger: Sold separately
• Canopy/body material: GRP
• Tail rotor material: Carbon fiber
• Main frame material: Carbon fiber
• Battery: Sold separately

Scope of delivery

• 1x Blade Fusion 700 Helicopter Kit
• 1x Spektrum Avian 4735-540Kv 10-pole brushless outrunner motor (included)
• 1x Blade 700mm carbon fiber main rotor blade set (included)
• 1x Blade 105mm carbon fiber tail rotor blade set (included)
• 1x foam blade holder (included)
• 1x instruction manual
• 3x Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (SPMSH6350)
• 1x Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (SPMSH6360)
• 1x Spektrum Avian 200A Brushless Smart ESC for 6S-14S with IC5 (SPMXAE1200HV)
• 1x Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350HX)
• 1x Spektrum DSMX satellite receiver (SPM9745)

Still required

• 1x Full-Range 6+ channel Spektrum DSMX®/DSM2® compatible computer transmitter
• 2x 6S 22.2V or (1) 12S 44.4V 4000-5000mAh LiPo battery with EC5 or IC5 connector
• 1x compatible Lipo charger
