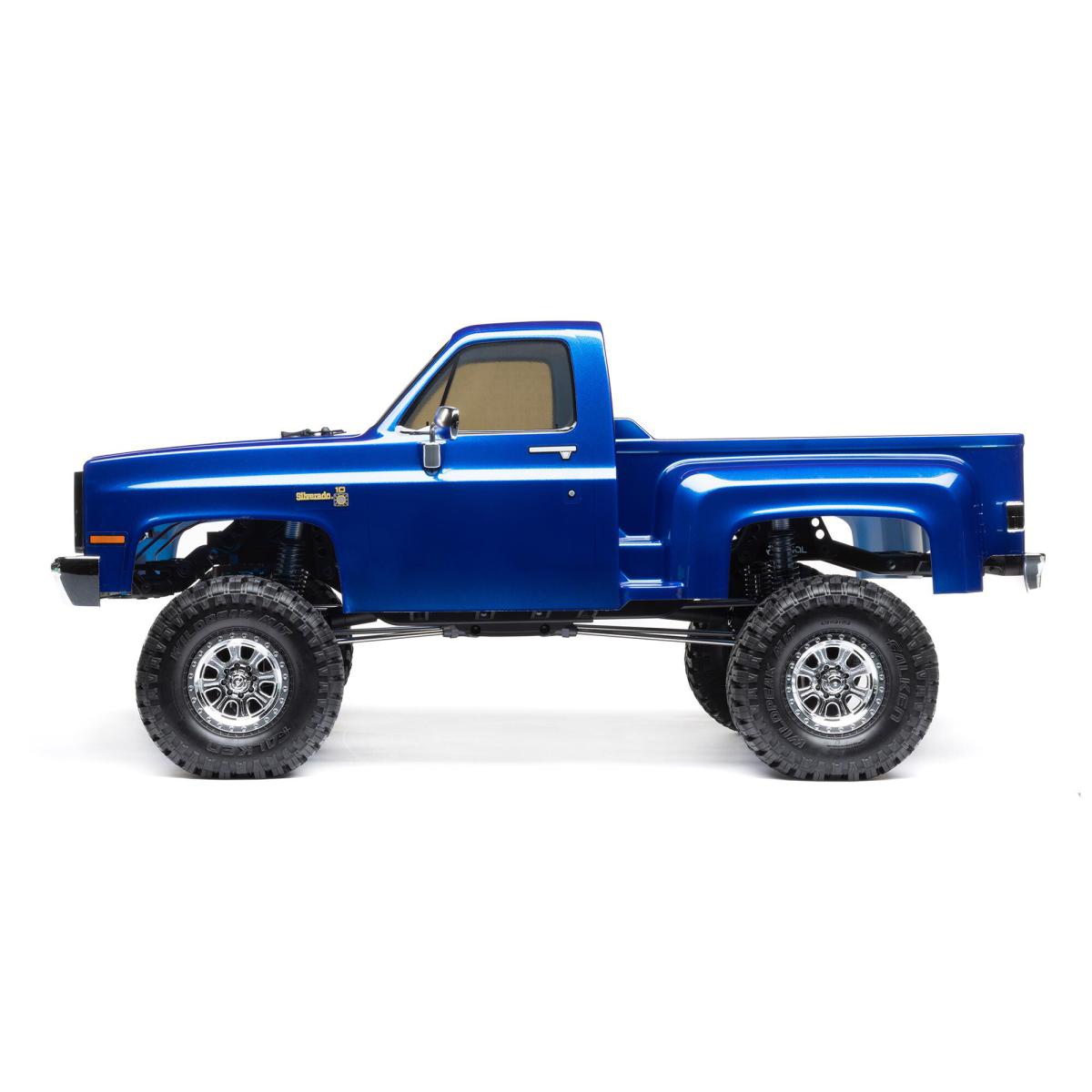

1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR, Blue

The Ready-to-Run Axial SCX10 III Base Camp 1982 Chevy K10 is based on the popular pickup truck that became an icon of American off-road sports in the late 1970s and 1980s. With its powerful performance and cool look, it is in no way inferior to its role model.

Features

• Factory assembled and ready to run
• Sturdy SCX10 III steel C-profile frame
• High ground clearance thanks to AR45 portal axles
• Durable LCXU transmission
• All-metal ball heads
• All-metal gearbox
• Complete ball bearings
• Adjustable oil-filled shock absorbers
• Officially licensed 1982 Chevy K10 Stepside body
• Officially licensed Falken Wildpeak tires
• Dynamite 35T brushed motor
• Spektrum 40A brushed ESC
• Spektrum SLT3 3-channel 2.4GHz remote control

Car overview

You don't have to be a car enthusiast to immediately recognize the Chevy K10 pickup. Although its straight-line appearance earned it the nickname "square body" in the USA, the iconic truck was also one of the first C/K generations to be optimized with computers and in wind tunnels to achieve lower drag and thus improved fuel economy. The result was a beautiful and rugged classic that you can now drive yourself with the Axial SCX10 III Base Camp 1982 Chevy K10.

Offered in a proven 'ready-to-run' package, the Base Camp K10 is easy to get ready to drive and tackles almost any terrain - just like the original, conquering country roads, fields and forest trails before parking on the main highway. Designed for Americana-inspired off-road fun rather than technical climbs and prickly slopes, the Base Camp K10 is ideal for everyone. It's a great first crawler and a fantastic addition to any longtime Axial fan's fleet.

The officially licensed Stepside body of the Proline Chevy K10 comes expertly painted and detailed at the factory. Axial provides a winning combination of scale looks and impressive durability and performance. The SCX10 III's steel C-section chassis is robust, realistic and easy to maintain. The included AR45 portal axles provide high ground clearance. The robust LCXU transmission with full ball bearings and all-metal internal gears works with both portal and standard axles. In addition, the suspension is optimized and tunable oil-pressure shock absorbers and an off-road drive train are installed.

For more RTR convenience, the Base Camp K10 drive system - with a Dynamite 35T brush motor and Spektrum 40A brush controller - is also factory-installed, and the included Spektrum SLT3 radio provides a reliable 2.4GHz connection. Simply install your choice of 2S or 3S LiPo battery and take control of this classic US truck!




SCX10™ III STEEL C-PROFILE CHASSIS
The rigidity of the SCX10 III's C-section chassis reduces the deflection of the ladder frame and increases the precision of the suspension movement.


AR45 PORTAL AXLES
The supplied AR45 portal axles provide additional ground clearance at the differential, making off-road maneuvering easier.


LCXU TRANSMISSION
The LCXU all-wheel drive transmission is durable and simple and works with standard and portal axles. The transmission also includes a full set of ball bearings and all-metal gears for stability and durability.


OPTIMIZED SUSPENSION GEOMETRY
The Base Camp K10's front suspension geometry is optimized to reduce bump steer, while the rear 4-link suspension reduces twist.


METAL LINKS
All links and ball joints are made of metal to ensure durable and long-lasting operation.


ADJUSTABLE ALUMINUM STRUTS
The oil-filled shock absorbers have aluminum threaded bodies and a single coil spring. The shocks are tunable to achieve the best damping rate.


FALKEN WILDPEAK M/T TIRES
The new 4.19" Falken Wildpeak M/T R35 compound tires on one-piece Raceline 928 Monster rims mounted on the Base Camp K10 provide optimized ground clearance and grip on dust, rocks and all other off-road trails.


INSTALLED DRIVE SYSTEM
The supplied and installed drive system features a Dynamite 35T brush motor and a Spektrum 40A brush controller. With this simple and reliable combination, you'll spend more time on the trail and save tons of time on maintenance.


DETAILED BODY OF THE PROLINE CHEVY K10
The officially licensed Stepside body of the 1982 Proline Chevy K10 is factory painted and detailed and unmistakably represents the 'square lines' of the legendary US truck.


SPEKTRUM™ SLT3 REMOTE CONTROL SYSTEM
The included SLT3 3-channel remote control with SR315 Dual Protocol receiver provides a reliable SLT 2.4 GHz connection and DSMR® upgrade capability for future modifications. Driver-adjustable features include steering and throttle trim, steering throw and throttle travel limits. The transmitter's foam-covered steering wheel provides slip-free control.

Technical data

• Connector Type: IC3
• Tire Compound: R35
• Wheel Hex Size: 12mm
• Motor Size: 540
• Product Width: 9.25" (235 mm)
• Tire Tread: Falken Wildpeak M/T
• Ground Clearance: 2.5 in (63.5mm)
• Charger: Sold Separately
• Completion Level: Ready-To-Run
• Product Height: 9.75" (248 mm)
• Drive Type: Forward/Brake/Reverse
• Scale: 1/10
• Brakes: Integral with ESC
• Shock Type: Oil-Filled/Coil-Over Spring
• Product Length: 20.75" (527 mm)
• Differential: Locked
• Final Drive Ratio: 45.6:1
• Internal Gear Ratio: 45.6:1
• Steering Type: 2WS
• Battery: Sold Separately
• Receiver: Included
• Make: Chevy
• Track Gear: 52T
• Gear Pitch: 32P
• Power Type: Electric
• Motor Type: Brushed
• Water-Resistant: Yes
• Chassis: Adjustable Steel C-channel
• Vehicle Type: Rock Crawler
• Suspension: Multi-Link Solid Axle
• Radio: Included
• Drivetrain: 4WD
• Wheel Width: 1 in (25.4mm)
• Speed Control: Included
• Servos: Included
• Wheelbase: 12.3" (312 mm)
• Ball Bearings: Full Set
• Pinion: 14T
• Product Weight: 5lb (2.3kg)
• Body: Polycarbonate


In The Box
• (1) 1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR
• (1) Dynamite 35T 540 Brushed Motor
• (1) Spektrum SLT3 3-Channel SLT Remote Control
• (1) Spektrum SR315 DSMR 3-channel receiver
• (1) Spektrum S614 15kg steel gear WP Servo 23T
• (1) Waterproof Spektrum 40A Brushed ESC
• (4) AA transmitter batteries
• (1) SCX10 III Base Camp 1982 Chevy K10 Owner's Manual


Needed to Complete
• (1) 2S or 3S LiPo battery with EC3 or IC3 connector
• (1) Compatible LiPo charger
