AR14410T 14-Channel PowerSafe Telemetry Receiver

Spektrum AR14410T 14-Channel PowerSafe™ Telemetry Receiver

The AR14410T is a 10-channel receiver with full-range telemetry that features the Spektrum™ PowerSafe™ redundant dual power supply system. It also has connections for telemetry sensors for speed, voltage and temperature as well as X-Bus. The receiver also has an integrated vario/altitude sensor and mAh sensors, which enable the used capacity to be monitored. The receiver can be powered via the servo connector or via the two IC3™ connectors on 13AWG cables. Additionally, the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) gyro module can be connected for improved flight stability and instant attitude correction in adverse flight conditions.
With an optional micro SD card, the AR14410T can store flight data as a CSV file for later review. The new PowerSafe LED soft switch or the button integrated in the housing can be used for switching on/off. In combination with compatible Spektrum remote controls, the system can also be put into sleep mode from the transmitter and woken up again without having to operate the switch on the receiver. Similarly, the receiver can also be switched off/shut down from your compatible Spektrum transmitter. Binding is initiated via a push button or a bind plug. The AR14410T can be easily updated via a USB-C connection.

Spektrum AR14410T 14-Channel PowerSafe Telemetry Receiver Features

• Compatible with the Synapse™ AS3X+/SAFE flight stabilization module (SPMAS6000, not included)
• Patented, redundant PowerSafe™ dual power supply system with two IC3 connectors on 13AWG cables. Perfect for aircraft and servo applications with high current consumption of up to 35 A (max. 50 A burst)
• Forward programming allows easy adjustments to failsafe settings, servo frame rate settings and more
• Innovative power system with sleep mode that allows pilots to power on and off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12V servos (must be activated via Forward Programming)
• Integrated battery capacity sensor automatically reports the capacity used during flight and can be automatically reset when fully charged batteries are connected
• Integrated black box telemetry log automatically saves all telemetry data when a micro SD card is inserted (micro SD card not included)
• Integrated status LED provides helpful information during startup, as well as warnings and mode indicators
• Prepared for use with Spektrum Smart ESCs for one-wire telemetry data without modules, connections and cables
• Capacitance and voltage sensor for the receiver batteries and flight log telemetry data without additional sensors
• Full-range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
• The included soft switch is decoupled from the servo power so that the system power supply cannot be interrupted if the switch fails for any reason
• Vibration-damping rubberized mounting tabs and minimalist labeling ensure clean model finishes
• Enables 11ms high-speed frame rate
• Binding is easier than ever with four options to initiate the binding process
• Integrated telemetry with built-in connections for RPM, flight battery voltage, temperature sensors and X-Bus to expand telemetry sensors

THE NEXT GENERATION OF FLIGHT STABILIZATION
The AR14410T is compatible with the Synapse AS3X+/SAFE gyro module (not included) and provides improved flight stability and control for your aircraft. The brand new AS3X+ features a greatly improved stabilization algorithm that has been meticulously developed and tested by experts. The system is easy to set up and can be easily optimized for any type of aircraft. Never again spend hours adjusting and optimizing until your aircraft is perfectly tuned. We were able to set up and fly most airplanes in less than 5 minutes.

The most important improvements of AS3X+ include:
• Lock and release parameters
• Heading Hold improvements
• Improved gryo filtering
• Support for canard and thrust vector control

PATENTED POWERSAFE™ REDUNDANCY SYSTEM
The Spektrum™ AR14410T Powersafe receiver is the ultimate safe dual power supply for high-power aircraft. For models with many servos and high power consumption (e.g. large aircraft, jets, etc.), the PowerSafe power supply manages the two connected receiver batteries with true battery redundancy. Each battery is isolated and if one battery fails/shorts out, the other takes over seamlessly.

INNOVATIVE BATTERY CAPACITY MONITOR
The PowerSafe receivers feature dual telemetry monitoring of battery capacity when used with Spektrum AirWare transmitters. Activate the Auto-Config feature in your transmitter's telemetry menu to read the capacity used by the receiver. The used capacity is saved from flight to flight and added until reset. The capacity can also be reset automatically when fully charged batteries are connected, allowing easy monitoring of battery capacity.

SLEEP MODE
The AR14410T receiver features an advanced power system with sleep mode that allows pilots to turn the model on and off from the remote control. This convenient and exciting new feature allows you to activate the receiver in your aircraft without having to flip a switch on the model.

INTEGRATED "e;BLACK BOX "e;TELEMETRY PROTOCOL
When a micro SD card is inserted into the receiver, flight information is logged to a file on the memory card during operation, including flight log data, battery status and other telemetry data measured during operation. If not deleted, older recorded data logs will be overwritten, with the most recent logs retained. This can be a handy tool for reading flight data for diagnostic purposes.

FORWARD PROGRAMMING
You can configure the AR14410T receiver wirelessly directly from any compatible Spektrum transmitter via the "e;Forward Programming "e; menu. No separate computer or mobile device is required for setup and adjustments.

INTEGRATED BAROMETER
The Spektrum AR14410T receiver features a built-in barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

MICRO-USB CONNECTOR
A user-friendly micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC programmer.

COMPREHENSIVE TELEMETRY OPTIONS
In addition to the built-in telemetry sensors, the AR14410T supports an extensive list of Spektrum telemetry sensors and third-party telemetry accessories. Easily add powerful telemetry data tools to your model, such as GPS, airspeed sensors, engine RPM and turbine ECU telemetry from supported manufacturers.

Technical Data

• Application: Air
• Telemetry: Yes
• Bind Method: Bind Button, Bind Plug
• Product Length: 2.6" (66 mm)
• Range: Full
• Programmable: Yes
• XPlus Compatible: Yes
• Modulation: DSMX/DSM2
• Channels: 14
• Product Weight: 2.7oz (76g)
• Remote Receiver Ports: 4
• Serial Out: SRXL2
• Product Width: 2.4" (61mm)
• Data Port: Yes
• Resolution: 2048
• Product Height: 1.75" (44 mm)
• Failsafe: Yes
• Technology : AS3X+
• Integrated Variometer: Yes
• Band: 2.4GHz
• Input Voltage: 3.5-12.6V

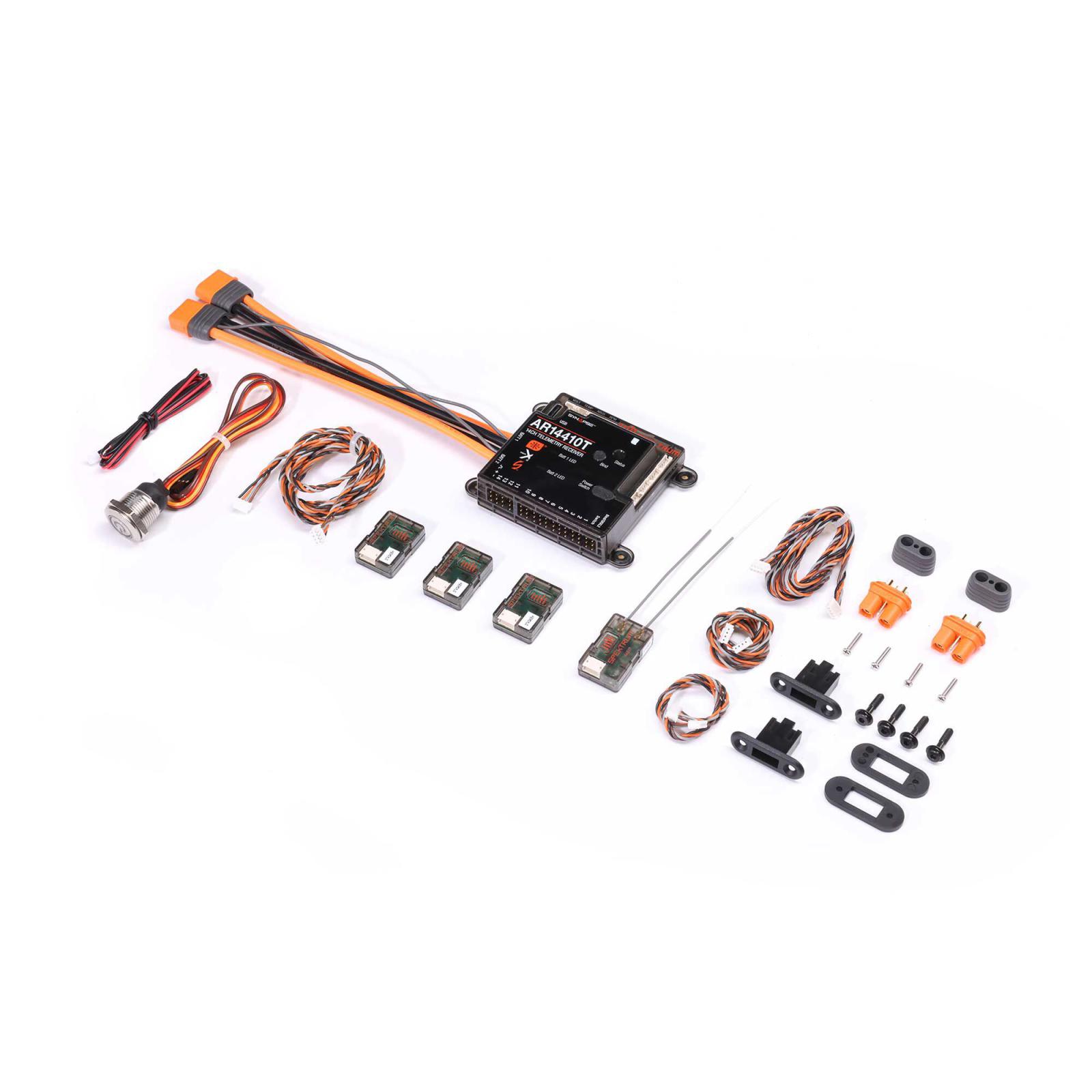

Scope of delivery

• 1x AR14410T 14 channel PowerSafe receiver
• 1x SPM4651T SRXL2 Satellite Receiver
• 3x SPM9747 SRXL2 DSMX satellite receiver
• 1x 9" SRXL2 satellite receiver cable
• 1x 12" SRXL2 satellite receiver cable
• 1x 24" SRXL2 satellite receiver cable
• 1x 36" SRXL2 satellite receiver cable
• 2x IC3 battery connectors
• 2x sockets
• 1x voltage sensor
• 1x soft switch
• 1x instruction manual
