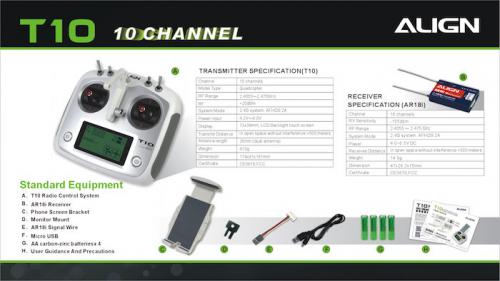

Align T10 10-Ch 2.4GHz AFHDS 2A Transmitter Set incl. AR18i

• AFHDS2A (Automatic Frequency Hopping Digital System Second Generation) features with superior protection against interference, low power consumption, and high sensitivity receiver.
• Capacitive touch screen design makes setup much intuitive and simple.
• Equipped with 4 switches, 2 knobs and 2 buttons for multi-functionality setup.
• Support Mode 1, Mode 2, Mode 3, Mode 4 stick mode.
• Independent identification ID enhance the system stability of proactive anti-interference.
• High efficiency Omni-directional gain antenna maintaining a strong reliable connection.
• Optional mobile phone holder available for FPV screen viewing.
• Feature with update function.
• Feature with stick trim function.

Specifications

T10 Transmitter
Channel: 10 channels
Model Type: Quadcopter
RF Range: 2.4055 ~ 2.475 GHz
RF: < 20dBm
System Mode: 2.4G system AFHDS 2A
Power Input: 4.2V ~ 6.0V
Display: 73x39mm, LCD Backlight touch screen
Transmit Distance: In open space without interference <1000M
Antenna Length: 26mm (Dual Antenna)
Dimension: 179x81x161mm
Weight: 410g (not incloude battery)

Specifications

AR18i Receiver
Channel: 18 channels
RX Sensitivity: -105dBm
RF Range: 2.4055 ~ 2.475 GHz
System Mode: 2.4G system AFHDS 2A
Power: 4.0 ~ 6.5V DC
Transmit Distance: In open space without interference <1000M
Dimension: 27x26.2x15mm
Weight: 14.9g

Content

• 1x Align T10 Transmitter
• 1x Phone Screen Bracket
• 1x Monitor Mount
• 1x AR18i Receiver
• 1x AR18i Signal Wire
• 4x 1.5V Ni-MH chargeable battery (AA size)
• 1x Micro USB
• 1x User Guidance
• 1x Precautions
