800 Airwolf HSM800 Black ARF KIT

Roban Airwolf 800 Size Scale Helicopter ARF (Almost Ready to Fly)

This is the Roban Airwolf Scale 800 ARF, a premium scale kit that offers unparalleled attention to detail. From tip to tail, the Airwolf body kit impresses with a level of detail that matches the fictional full-scale aircraft from the TV series - a level of precision rarely seen elsewhere in the RC helicopter hobby.

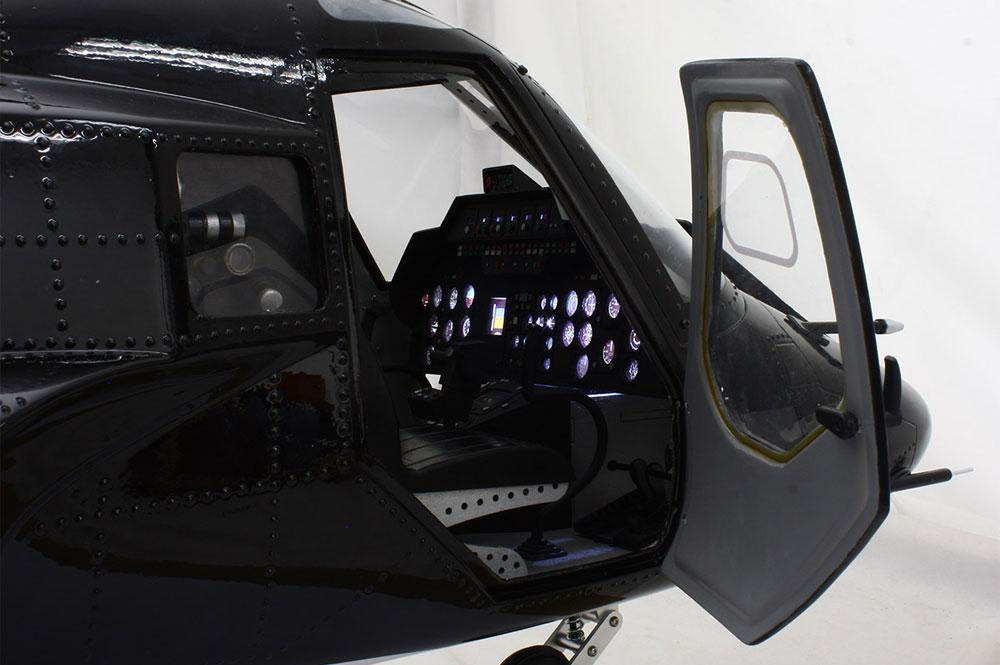

The kit includes a fully illuminated scale cockpit with illuminated instrument and overhead panels, joysticks, tail pedals, antennas, windshield wipers, weapons, special cameras on each side of the fuselage and much more. Customizable floor and ceiling panels make it possible to create an impressively true-to-scale interior after assembly. In addition, a 3-point electric retract system is included, which is easy to install and gives the model the ultimate scale finish.

These scale kits place the cockpit in exactly the right position, while the mechanics are integrated in the engine compartment, just like the original. The Airwolf impresses with a highly detailed and precisely scaled profile.


Roban scale helicopters are designed for modelers with advanced skills. Both ARF and KIT versions require the installation of their own electronics (ESC, servos, motor, etc.). For KIT versions, the helicopter mechanics must also be installed. As these mechanics can differ considerably in size and shape, it may be necessary to modify the fuselage slightly (cutting, drilling etc.) to achieve a perfect fit. The handmade fiberglass fuselages may have slight tolerance variations between the body panels, doors or windows, but these do not affect the flight characteristics and can be easily adjusted by an experienced modeler with the right tools.

Features

• 2-blade rotor head with true-to-scale carbon fiber rotor blades
• 2-blade tail rotor with true-to-scale carbon fiber tail rotor blades
• Extremely detailed surface with molded panel lines and rivets
• 3-point electric retract system for the ultimate scale finish
• Fully illuminated scale cockpit
• Fully integrated or partially pre-assembled position light system (controllable via AUX channel)
• Special CCPM mechanics in the upper section, as in the original
• Take-off weight approx. 9 kg
• Overall length: 1794 mm (approx. 71 inches)

Technical data

• Skill level: Expert
• Build time: 4+ hours
• Class / Size: 800
• Drive type: Electric
• Rotor system: Collective Pitch
• Fuselage material: Fiberglass
• Overall dimensions (L x W x H): 1850 x 580 x 510 mm
• Flying weight: 8500 g
• Main rotor diameter: 1660 mm
• Main rotor blade length: 750 mm
• Tail rotor diameter: 280 mm
• Tail rotor blade length: 105 mm
• Tail drive: Torque tube
• Servos required: 3x MKS DS1220 - MKS6005-002
• Tail servo: 1x MKS HBL980 - MKS-HBL980
• Power system: 560Kv brushless motor
• Electronic speed controller: 160A high voltage with EC5 connection
• Recommended battery: 2x 6S 22.2V 5000 mAh LiPo with EC5 connector (in series for 12S)
• Required remote control: 8-channel
• Recommended operating environment: Outdoor area

Scope of delivery

• Roban Airwolf 800 size scale fuselage
• Complete 800 size helicopter mechanics
• 2x carbon fiber rotor blades
• 2x carbon fiber tail rotor blades
• Fully illuminated scale cockpit
• Fully integrated or partially pre-assembled position light system
• 3-point electric retractable landing gear system

Note: The rocket gun for the underside (RBN-AW8RL) is not included in the kit.

Still required

• Helicopter flight control system: (recommended: Microbeast Flybarless System)
• Electronic speed controller (ESC): (recommended: Castle Creations Phoenix Edge High Voltage 160A ESC with cooling fan)
• Voltage source (BEC): (recommended: Castle Creations 20A BEC Pro)
• Brushless motor: (recommended: 4230EC Eclipse 4230-520kV)
• 3x cyclic servos: (recommended: MKS DS1220 High Torque Servo Multi-Pack)
• Tail servo: (recommended: MKS DS HBL980)
• 12-cell 44.4V 5000 mAh LiPo battery: (recommended: Admiral 5000 mAh 6S 22.2V 50C LiPo Battery Multi-Pack in series)
• Remote control: At least 8-channel (with pitch and throttle curves)
• Receiver: At least 8-channel
