1:18 EVO Crawler „Rock Van V2“ 2Gear blue/orange RTR

Our 1:18 crawler in the EVO version not only looks good but can also do a lot!

It doesn't need a lot of space and the "playground" is quickly made. Simply throw a few cushions on the floor or build a course at your desk at lunchtime and the fun can begin! Thanks to the proportional radio remote control, the finest driving maneuvers are possible to overcome even the most complicated-looking obstacles.

Features

• New EVO features and functions
• New over-size 130 "Crawler Spec" brushed motor (100T)
• Newly developed 2-speed gearshift with steel gearbox (changeover on CH3 remote control)
• New extreme portal axles with steel gears for even more ground clearance
• New motor mount (also suitable for larger motors up to 270)
• New reinforced drive shafts front & rear
• New *LCG-optimized chassis layout (*Low Center of Gravity)

and also...

• 2.4GHz transmitter/receiver unit
• Illumination by control on the transmitter (CH4)
• Oversize 1.2" AT tires with internal bead lock system
•1kg steering servo with panhard bar
• PPX4 water resistant electronics
• Metal chassis frame
• Painted 1.2mm Lexan body
• Tight turning circle of 80cm
• Driving time of up to 45 minutes
• Steering angle of up to 45°
• Maximum ground clearance thanks to portal axles and 1.2" tires
• Portal axles front and rear for increased ground clearance.
• Functional LED lighting front and rear (low beam, high beam, indicators, hazard warning lights and tail light). Operation is via the 4th channel on the transmitter.
• Newly developed and reinforced drive shafts front and rear

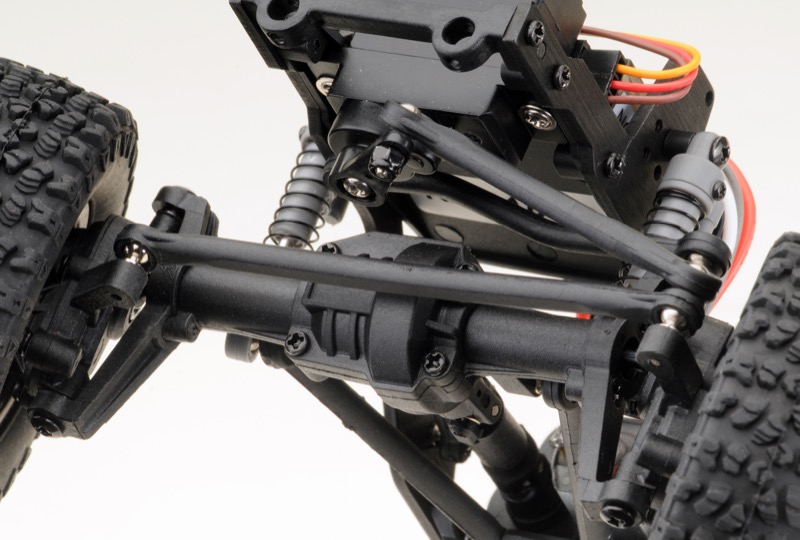

• Specially developed portal axle with new drive ratio. This ensures a butter-soft response at low speeds and even more torque. The new axle also achieves a steering angle of up to 45°. The gearbox in the axles is made of tool steel.
• Newly developed 2-speed high-performance gearbox - gear 1: 98:1 / gear 2: 24.5:1 switchable via CH3 on the remote control. A gearbox made of tool steel is also used here
• The motor mount is compatible with brushed and brushless motors up to a size of 240
• Super-soft 1.2" "All Terrain" wheels with internal bead lock design.
• Simple, balanced and easily accessible "LCG" chassis layout with high performance drivetrain.

Technical data

• Scale: 1:18
• 4WD (all-wheel drive)
• 2.4GHz remote control system
• High Torque 2-speed steel gearbox, gear ratio 1: 98:1 / gear ratio 2: 24.5:1(CH4)
• 100T / 130 brushed motor
• Differentials fully locked (front & rear)
• Telescopic UJ cardan shafts
• Metal chassis frame
• Drag/Mountain Brake (prevents rolling on hills)
• Digital proportional control for sensitive driving maneuvers
• LED lighting (CH4)
• Scale body with many attachments
• 1.2" bead lock wheels with super soft AT tires
• Waterproof 1kg mini steering servo
• 2-in-1 speed controller/receiver unit
• Ride time: approx. 45 minutes
• Speed controller: 2-in-1 ESC/RX unit, PPX4, 10A/50A
• Remote control: 2.4GHz, 4-channel
• Steering servo: 1kg actuating force, waterproof
• Motor: 100T - 130 oversize
• Newly developed 2-speed gearbox
• Steel drive and portal axle gearbox
• Gear ratio: Gear 1: 98:1 / Gear 2: 24.5:1
• Battery: LiPo 7.4V/2S 600mAh
• Battery connector system: Molex 2-pin
• Wheelbase: 160mm
• Ground clearance: 37mm
• Track width: 110mm
• Length: 284mm
• Width: 125mm
• Height: 130.mm
• Weight: 470g (incl. drive battery)
• Wheels: 19.5x58mm

Content

1x Mini EVO Crawler
1x 2.4GHz remote control
1x LiPo battery 7.4V 600mAh
1x USB charging cable
1x sticker sheet
1x manual DE/EN/FR
1x mini tool set

Required for assembly

4x AAA batteries for the transmitter
