1/16 Mini-B 2WD Buggy Brushless RTR, Red

Your perfect start to RC racing with the affordable Losi Mini - B 2WD buggy - with its new brushless drive system and race-proven TLR 22 technology, the Mini-B combines high torque and powerful acceleration with agile handling, controllable jumping and easy cornering.

Functions

• Brushless drive
• Completely ready-to-run
• Track-ready with refined features
• Mid-motor chassis configuration
• Sturdy aluminum chassis
• Oil-filled threaded shock absorbers
• Brushless Spektrum 2-in-1 motor/ESC unit
• Powerful Spektrum Smart G2 810 mAh 2S LiPo battery
• Spektrum Smart G2 2S LiPo USB-C charger
• Metal gears
• Big Shot rear tires and wide body rib front tires
• Ball bearings (except steering)
• Spektrum SLT2 2.4 GHz radio control and SR315 receiver
• Spektrum SX108 Micro digital metal gear servo
• Optional parts available

Overview

Since the introduction of the first Mini-T stadium truck in 2003, Losi has continued to raise the bar for miniature RC racing performance. As more and more Losi Mini fans honed their skills on makeshift race tracks in backyards, basements and parking lots, Losi continued to raise the performance level of mini RC cars - introducing, for example, the suspension technology of the top-of-the-line TLR 22 model and the installation of brushless electronics. All these development stages led to this Losi Mini-B 2WD brushless racing buggy. Versatile, affordable, fast and fun, the Mini-B is an excellent platform on which to begin your RC racing career.

The brushless Mini-B comes fully assembled to your home and is ready-to-run with everything you need to hit the track. Although the Mini-B is small, it offers the performance of larger RC racing buggies. Its efficient brushless 2-in-1 motor/ESC unit delivers a top speed of 48 km/h in a straight line, while the predictable handling allows perfect steering into the next corner to overtake the competition and hit the next jump perfectly. The Mini-B is also robust enough to withstand collisions with rivals. The suspension is inspired by the prestigious TLR 22 - a vehicle often seen on the podium in the most demanding 1/10th scale buggy races. This makes the Mini-B behave like a high-end racing car, agile in the corners and easy to jump.

Many improvements have even been made to small details, which together make a big difference on the racetrack. The gearbox housing now accommodates stabilizers. The front bulkhead has been thickened for improved durability. An updated servo saver creates smoother servo power delivery and updated spacers for the shock chambers make for smoother running. These are just a few examples. The Mini-B 2WD Brushless race buggy is also equipped with a high capacity Spektrum Smart 810 mAh 2S LiPo battery for long run times and a Smart USB charger for easy, precise charging.

Losi has equipped the Mini-B with Wide Body Rib front tires and Big Shot rear tires - replicas of the extremely popular Losi profiles from the early 2000s.

The Mini-B chassis is tunable and optional parts are also available, so you can optimize the performance of your Mini Buggy as you gain racing experience to continuously improve your racing results. Get into RC racing today with the Losi Mini-B 2WD brushless racing buggy. Whether on your local race track or on a track set up in your basement, the passion for racing will never leave you.




MID-ENGINE CONFIGURATION
The mid-engine configuration of the Losi Mini-B 2WD Brushless race buggy provides balanced handling on high traction surfaces. It also achieves higher performance on different racing surfaces and better steering balance and traction.


ALUMINUM CHASSIS
The Mini-B is equipped with a 1.5mm thick 6061-T6 aluminum chassis plate that provides strength, durability and torsional rigidity, significantly improving racing performance.


OIL-FILLED THREADED SHOCK ABSORBERS
The injection molded oil-filled coilover shocks feature threaded shock boots that allow for easy preload and ride height adjustment for quick track adjustments after warm-up laps. The shock absorbers, which can be dismantled and filled from below, also have two O-rings to ensure that the oil is held securely in the shock absorbers. As an option, the shock absorbers can be tuned with springs of different hardness and separately available TLR shock absorber oils.


SPEKTRUM SMART G2 2S LIPO BATTERY
The supplied 7.4V 810mAh 2S Smart G2 50C LiPo battery not only offers a high capacity for long runtimes, but also stores its charging parameters on an integrated microchip. This data is automatically uploaded to the supplied Smart charger when the battery is connected. The safe and precise charging process starts immediately.


SPEKTRUM SMART G2 USB-C LIPO CHARGER
Using innovative Spektrum Smart technology, the included 2S LiPo battery automatically communicates with the included Smart USB charger as soon as you connect it. You don't have to worry about the right charging settings - the smart technology takes care of that. Charging is convenient, safe and easy!


RACE-PROVEN TIRES
The tires installed on the Mini-B 2WD Brushless race buggy are Losi's popular Big Shot rear tires and Wide Body Rib front tires, which are modeled after the tires from the early 2000s.


METAL GEARBOX
The metal gearbox is designed for the enormous power output of the Mini-B's brushless drive system. All gears are mounted on ball bearings to ensure smooth and efficient power transmission.


COMPLETELY BALL-BEARING MOUNTED
The entire vehicle is equipped with ball bearings for maximum smoothness and efficiency - a must for racing! (Except steering)


SPEKTRUM SX108 SERVO WITH SERVO SAVER
The Spektrum SX108 steering servo controls the Mini-B tires with a force of over 2.8 kg. Its servo saver ensures a smooth steering feel and protects the servo from sudden impacts caused by collisions with other vehicles on the track.


SPEKTRUM SLT2 2.4GHz REMOTE CONTROL
In addition to interference-free control, the included Spektrum SLT2 2.4GHz transmitter offers many functions such as steering trim, steering deflection and steering reverse. The throttle limit switch allows beginners to set the buggy's power to 50 %, 75 % or 100 % - perfect for learning to drive an RC car gradually and safely.


SPEKTRUM SR315 RECEIVER
The Spektrum SR315 3-channel dual-protocol receiver offers excellent range and response with a solid 2.4 GHz connection. It features an additional port for race transponders and allows upgrades to more powerful Spektrum transmitters without the need for a new receiver.


OPTIONAL PARTS
Whether competition, customizing or upgrades - everything is possible with the Losi Mini-B 2WD. A complete range of optional parts is available to modify this racing buggy according to your wishes.


REFINED DESIGN
Small changes make a big difference on the race track! Losi engineers found many ways to refine the design of the Mini-B after talking to RC racers. The height of the shock absorbers was adjusted to hold the spring securely. The rear wheels can be better secured with a bearing spacer mounted in the rear wheel hub. A new ball socket material ensures better function and durability. The transmission housing accommodates stabilizers and the front bulkhead has been thickened to increase strength. The new slipper clutch provides a smoother feel with the brushless drive, and the servo saver creates smoother servo power delivery while making the steering feel more direct.

Technical data

• Chassis: 1.5mm Plate, 6061-T6 Aluminum
• Connector Type: EC2
• Battery: Included
• Ball Bearings: Complete (Less Steering)
• Product Length: 10.7" (272 mm)
• Vehicle Size: Mini
• Suspension: Independent
• Vehicle Type: Buggy
• Radio: Included
• Internal Gear Ratio: 2.714
• Product Height: 4" (102 mm)
• Product Width: 7" (178 mm)
• Servos: Included
• Track Gear: 60T
• Completion Level: Ready-To-Run
• Receiver: Included
• Differential: Bevel Gear
• Motor Type: Brushless
• Scale: 1/16
• Wheelbase: 7.5" (191 mm)
• Charger: Included
• Power Type: Electric
• Speed Control: Included
• Brakes: Integral with ESC
• Drive Type: Forward/Brake/Reverse
• Shock Type: 7mm Bore, Oil Filled
• Pinion: 18T
• Body: Mini-B, Polycarbonate, Screened
• Gear Pitch: 0.5MOD
• Drivetrain: 2WD


In The Box

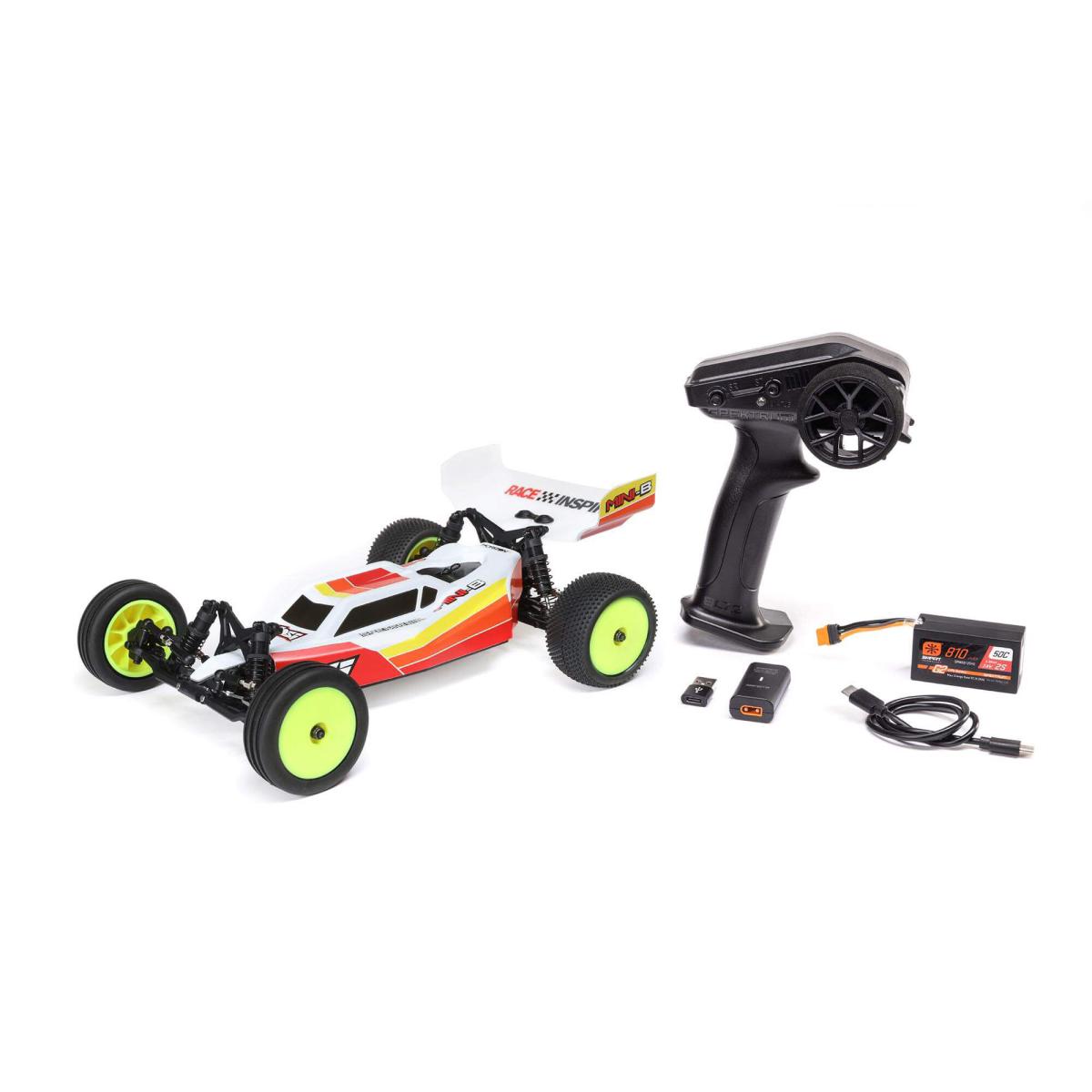

• (1) 1/18 Losi Mini-B 2WD Brushless Racing Buggy RTR
• (1) Spektrum SLT2 2.4GHz remote control
• (1) Spektrum SR315 2.4GHz Dual Protocol Receiver
• (1) Spektrum SX108 steering servo
• (1) Spektrum FRIMA 6000Kv Brushless Motor & ESC 2-in-1 Combo
• (1) Spektrum Smart G2 2S LiPo battery
• (1) Spektrum Smart G2 2S LiPo USB-C charger
• (4) AA transmitter batteries
• (1) Mini-B 2WD Brushless Owner's Manual
• Miscellaneous tools


Needed to Complete
• USB power supply with QC 2.0/3.0 18W+
